GROW K215-V1.3+R502-AW Fingerprint Access Control Board For Car Motorcycle Access Control

stars, based on 0reviews
$25.90now$23.50 piece
Quantity Price
10+ $22.56
999items available
Contact Us
OR
Description

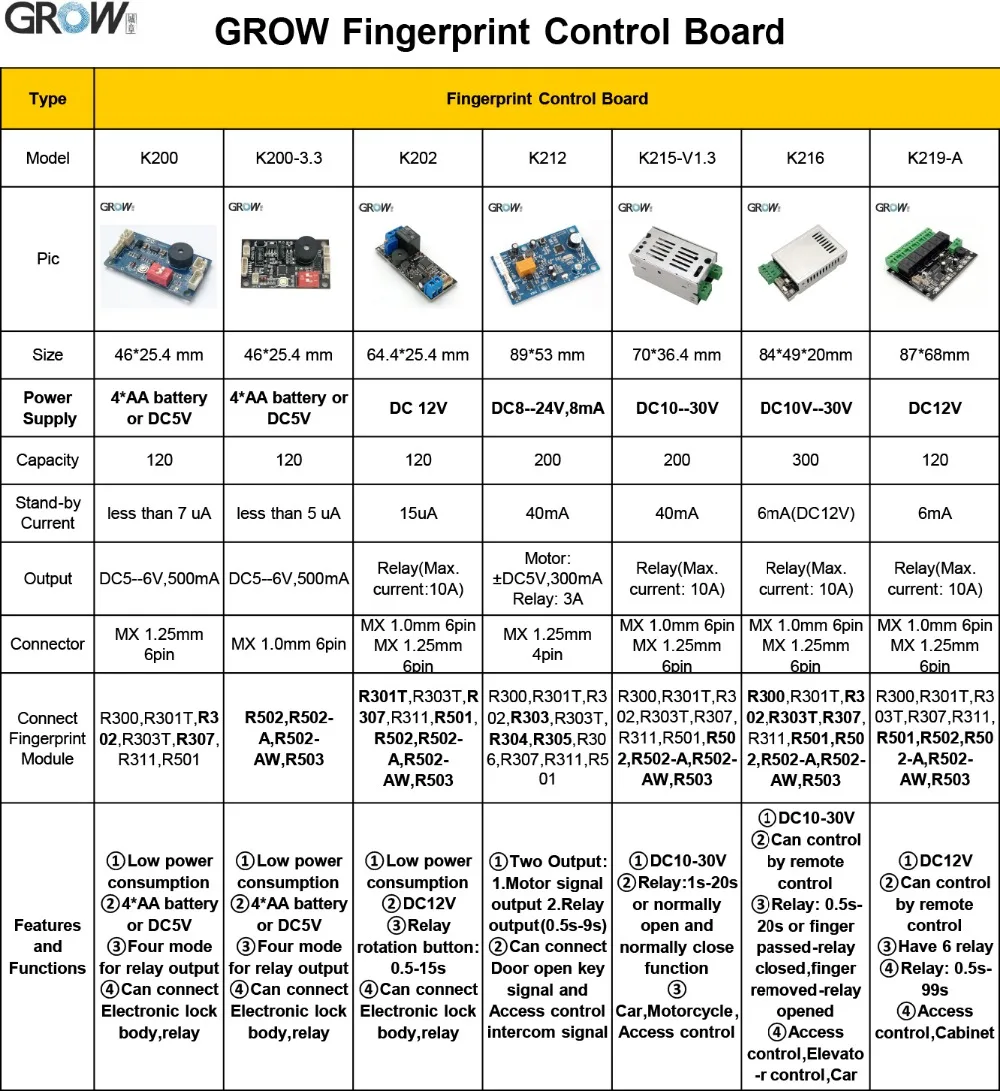

控制板对比表



Technical Parameters

·Power supply: DC10--30V,
·Stand-by current for control board: 40mA
·Fingerprint capacity: 200
·Relay Function: Normally Open or 1-20 second
·LED can off in sleep mode: long press (about 10s) the SET button, LED will be off in sleep mode.

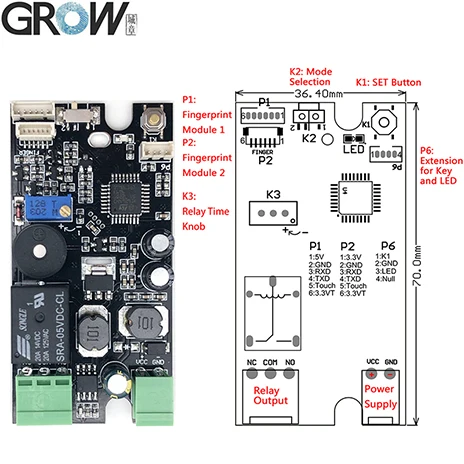

​K215-V1.3 Circuit board diagram

K215-V1.3-1





K215-V1.3 Reference Connection Diagram:

2




Operation Instruction

1. Press SET button shortly,system in register state and blue indicator light flash fast, place your finger in the collection area, fingerprint register successful when hearing music;Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds.

2. When back to factory default, press SET button until hear “Di” and music,means initialization operation successful.

3. Mode Selection Usage: when chose 2, operating time of the relay is 1s-20s after pass fingerprint,can adjust by knob. When chose 1, relay operated when fingerprint passed, and then relay released when fingerprint passed again, relay operated and released circularly. Relay released when power off.



Note:

●In factory status, any fingerprint can pass, after register fingerprints, this function is invalid;

●Set sleep mode, long press (about 10s) the SET button and do not release your finger until hearing the "DiDiDi" sound and the music,means initialization operation successful.


K215-V1.3 has a wide range of use, which can be used in automobile control, access control and other occasions.

K215-V1.3 can be connected with R300,R301T,R302,R303T,R307,R501,R502,R502-A,R502-AW,R503 fingerprint module.





R502-AW Specifications
ModelR502-AW
TypeCapacitive Fingerprint Module
InterfaceUART(TTL)
Resolution508 DPI
VoltageDC 3.3V
Fingerprint Capacity200
Sensing array192*192 pixel
Working current20mA
Standby currentTypical touch standby voltage: 3.3V, Average current: 2uA
Fingerprint module external size50*50*8.4 (mm)
Effective collection areaDiameter 15.5 (mm)
Enclosure materialZinc alloy
Connect control boardK200-3.3/K202/K215-V1.2/K216
ConnectorMX1.0-6Pin
LED ControlYES
LED ColorPurple and Blue and Red
Scanning Speed< 0.2 second
Verification Speed< 0.3 second
Matching Method1:1; 1:N
FRR≤1%
FAR≤0.001%
Work environment-20C ---60C
Work Humidity10-85%
Anti-static capacity15KV
Abrasive resistance intensity1 million times
Communications baud rate (UART):(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)



Pin


Product Files

·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual

You can dowload the K215-V1.3 user manual from this website link:
https://www.dropbox.com/sh/9itshhkx0r9mdyt/AABPH-Dhleve3A1Mn5ZA34pCa?dl=0

You can download the R502-AW user manual from this website link:

K215-V1.2 fingerprint control board connect with R501,R502,R502-A,R502-AW,R503 video on Youtube:https://youtu.be/1Zk2bjRdRpg

R502-AW Video on Youtube: https://youtu.be/Q82Zg4iFHOA

If need SDK files,pls contact us.




Product Pictures



R502-AW+K215-V1.2

K215-V1.2-E

K215-V1.2-A

K215-V1.3-D



​K215-V1.3 Circuit board diagram

K215-V1.3-F

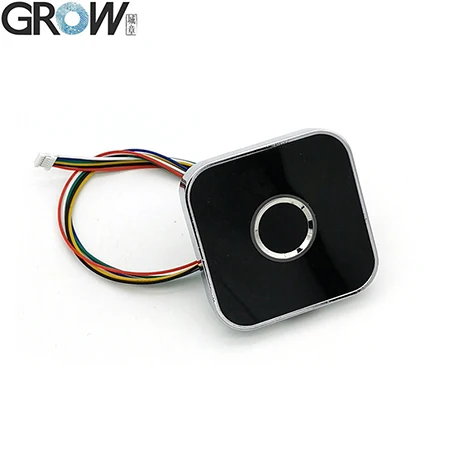

R502-AW Fingerprint Module

R502-AW-I

R502-AW-C

R502-AW-E

LED Effect picture

R502-AW-B

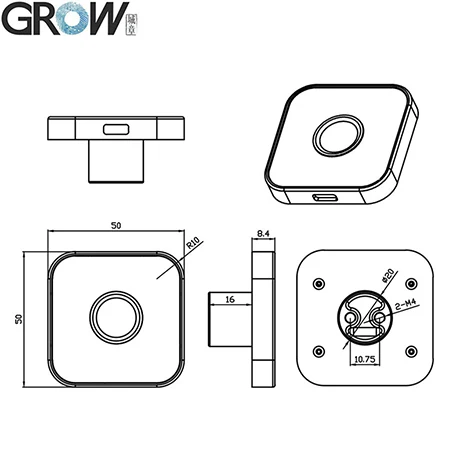

Size





R502-AW-H





Package Listing

R502-AW+K215-V1.2

K215-V1.3 can be used together with R501 capacitive fingerprint module

K215-V1.2-G



K215-V1.3 can be used together with R502-A capacitive fingerprint module

K215-V1.2+R502-A-


K215-V1.3 can be used together with R503 capacitive fingerprint module
K215-V1.2-F
Brand Name:
grow
Model Number:
K215-V1.3+R502-AW
Fingerprint capacity:
200
Power Supply:
DC 10V--30V
Standby current:
40mA
