GROW GM60 Stainless Steel LED Control Ring Indicator Light UART Interface 1D/2D Bar Code QR Code Barcode Reader Module

stars, based on 0reviews
$18.80now$15.90 piece
Quantity Price
10+ $15.26
999items available
Contact Us
OR
Description


Product Specification

SPECIFICATION
Model
GM60
Type
Barcode Scanner
Decoding Ability
QR Code, Data Matrix, PDF417,EAN13,UPC,Code 39,Code 93,Code 128,UCC/EAN 128
Scan Mode
640*480
Interface
UART
Resolution
5mil
Serial Baud Rate(UART)
57600
Operating Voltage
3.3V
Operating Current
70mA
Contrast
≥25%
Weight
25g
Size
External Diameter 28mm  Internal Diameter 25mm
Height 15mm    Thread M25
Scan Angle
Roll 360°, Pitch 55°, Yaw 55°
Viewing Angle
69°(Inclination), 56°(Elevation)
Light
Colorful indicator/green light flashing prompt reading success
Operating Temperature
-30 degrees to 70 degrees
Storage Temperature
-30 degrees to 85 degrees
Temperature Humidity
5% to 95% Relative humidity, Non-condensing





Product Files

·Provide User Manual

·CE Certificate


You can download the GM60 and GM60-S user manual from this website link:





Product Pictures

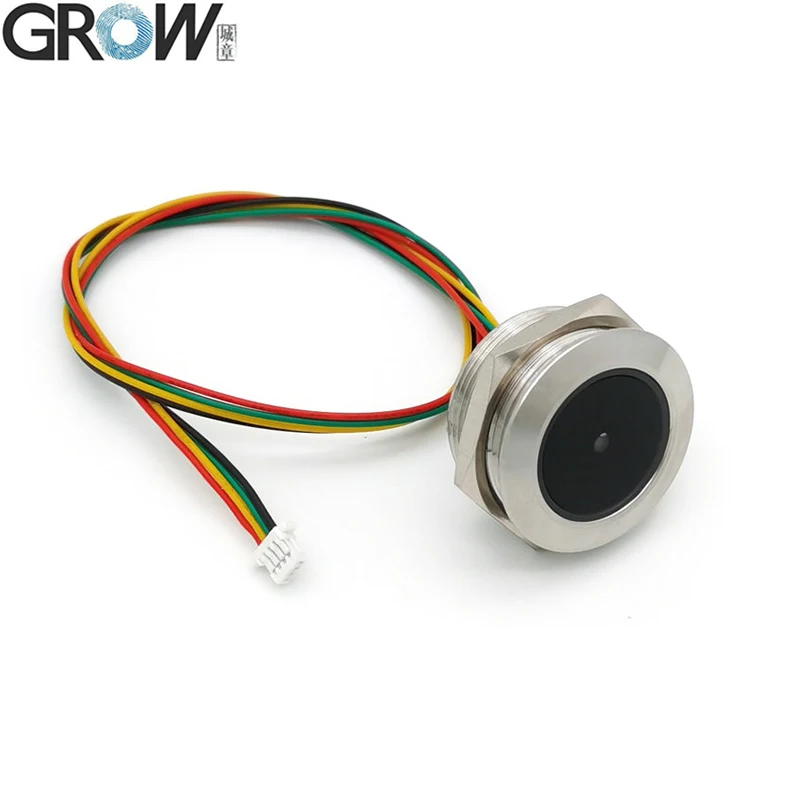

GM60-A

S903-H

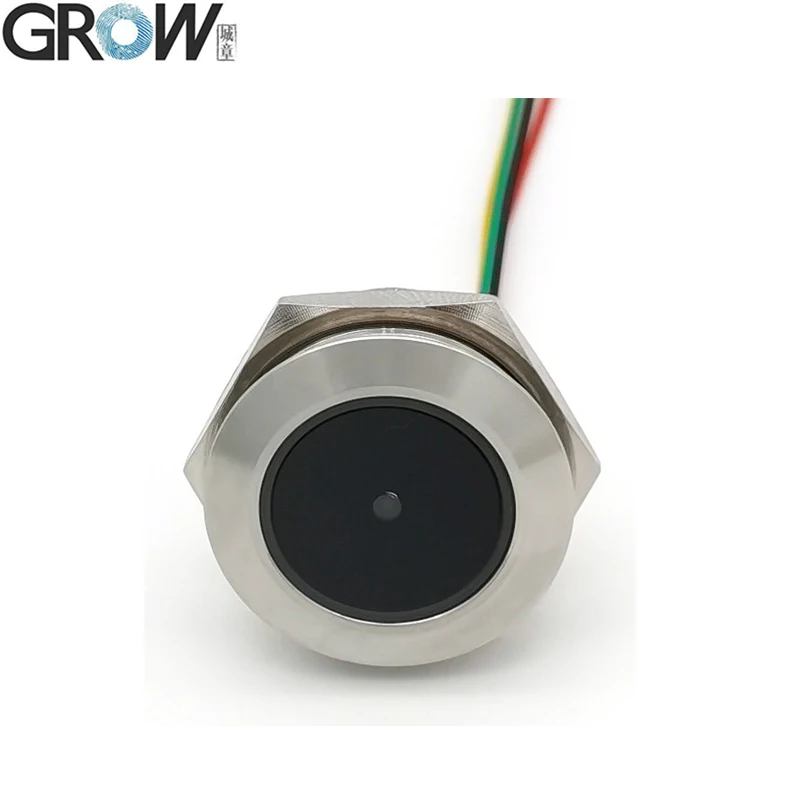

 GM60-E

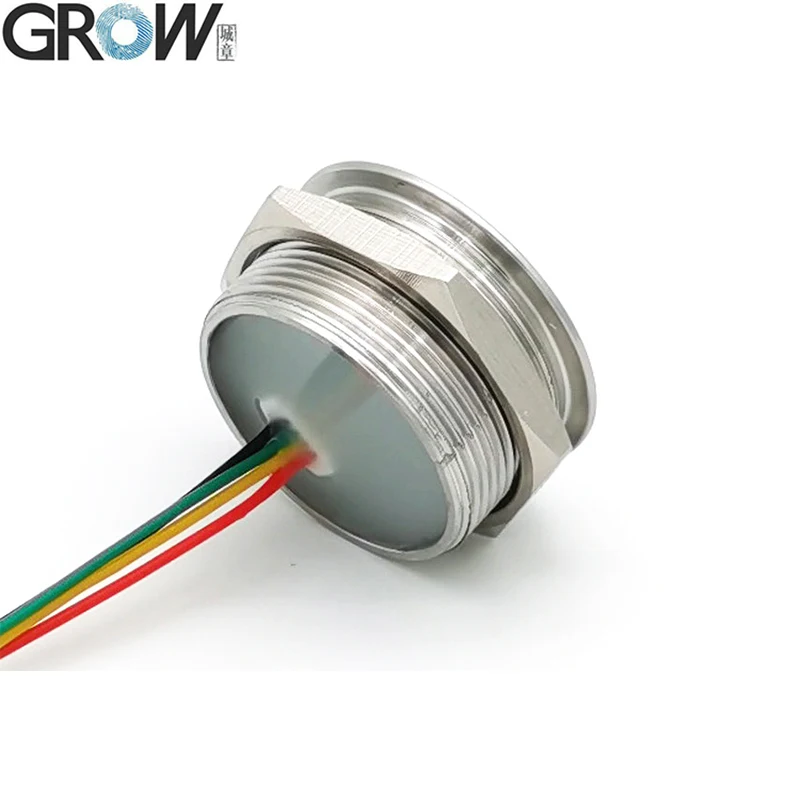

GM60-C

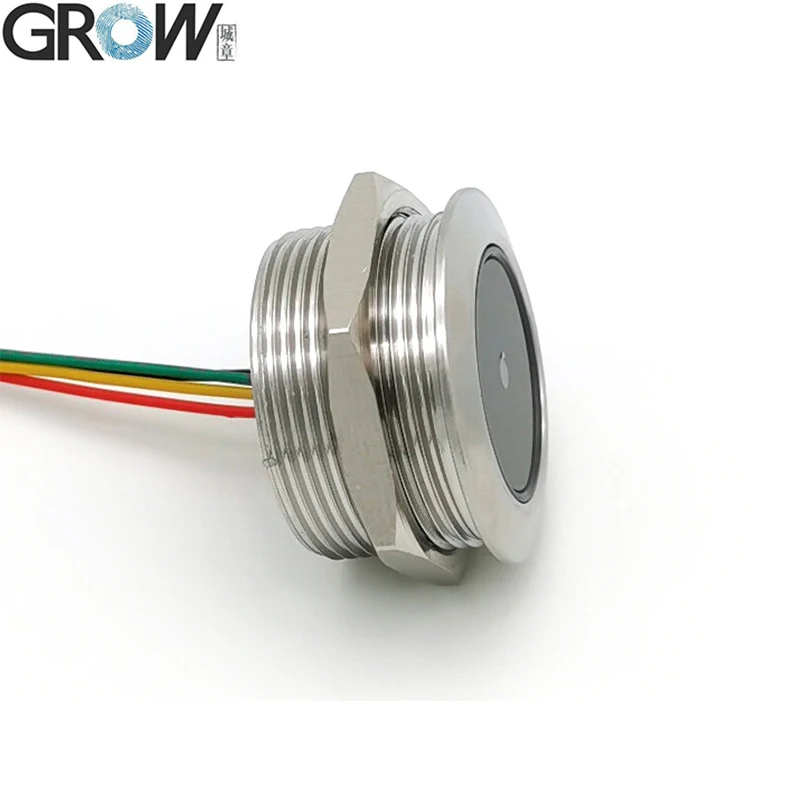

GM60-D

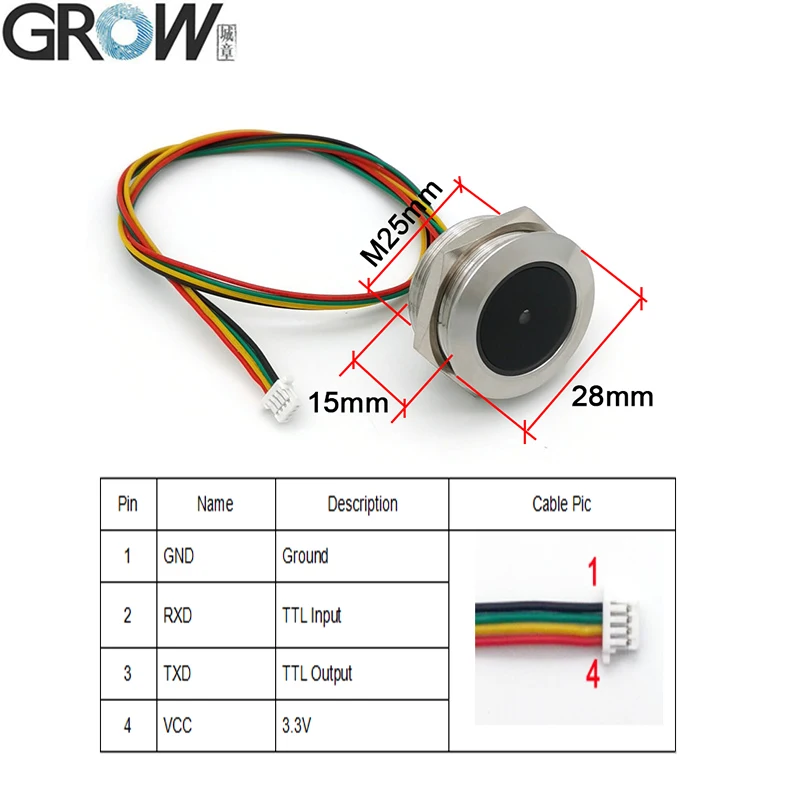

Size&Interface Definition

External diameter: 28mm, Internal diameter: 25mm, Height: 15mm, Thread M25

GM60-G







Package Listing

GM60-A

Brand Name:
grow
Model Number:
GM60
Operating Voltage:
3.3V
Operating Current:
70mA
Size:
External Diameter 28mm Internal Diameter 25mm Height 15mm
Weight:
25g
Serial Baud Rate(UART):
57600
Scan Mode:
640*480
