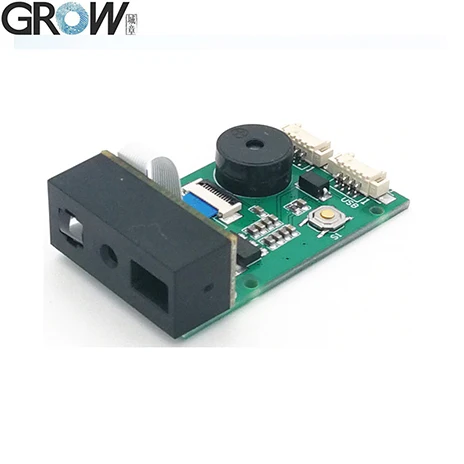

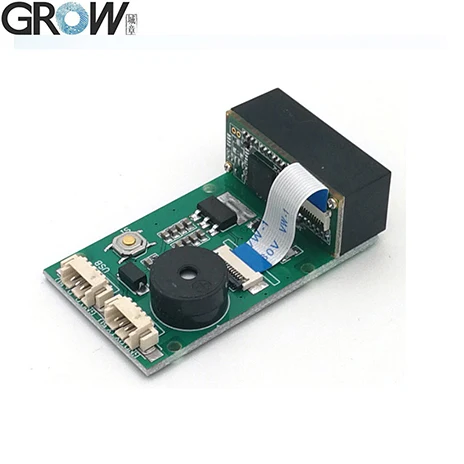

GROW GM67 1D 2D USB UART Bar Code Qr Code Scanner Module Reader

stars, based on 0reviews

~~$19.90~~$17.00 piece

Quantity Price

10+ $16.32

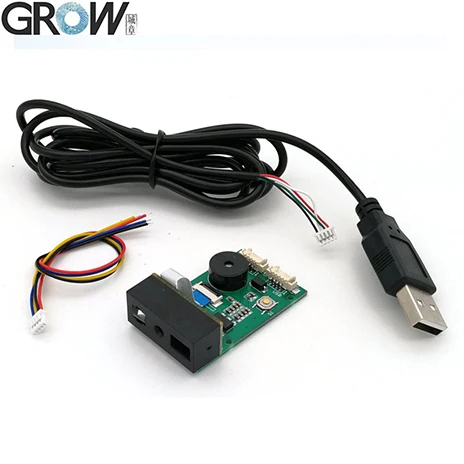

1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

2. High-efficiency recognization and high upload speed for improving your working efficiency.

3. With buzzer for reminding you that the scanning successfully or not.

4. Compatible with USB and UART interface.

5. Over 180 configurable options

6. Macro support replace a string in the bar code with another

7. Programmable preamble postamble and termination strings

8.Superior reading performance utilizing advanced decoding algorithms

Scanning Performance	Scan Mode		640*480 CMOS
	Lighting		White LED
	Collimate		Red LED
	Read Code Type	2D	QR Code, Data Matrix, PDF417,Aztec,Micro QR,Micro PDF417
		1D	EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar,
			Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey
			GS1 Databar ,Code 11,Industrial 25,
			Standard 25,Plessey, Matrix 2 of 5
	Accuracy of reading		≥5mil
	Depth of Field	EAN-13	60mm-220mm (13mil)
		Code 39	40mm-90mm (5mil 10 byte)
		QR Code	30mm-220mm (20mil 16 byte)
		Data Marix	40mm-110mm (10mil 20 byte)
		PDF417	30mm-130mm (6.67mil 7 byte)
	Contrast		≥25%
	Scanning angle		Intersection angle 360°,Elevation ± 55° Deflection angle ± 55°
	Viewing Angle		D:42° H:34° V:26°
Mechanical/ Electrical Parameters	Interface		TTL-232 , USB (HID-KBW, Virtual serial port)
	Dimension		27.5(W)46.5(D)14(H)mm
	Operating Voltage		DC 5 V
	Operating Current		180mA
	Standby Current		USB:25mA; TTL:10mA
Environmental Parameters	Operating Temperature		-20℃~+50℃
	Storage Temperature		-40℃~+70℃
	Operating Humidity		5%~95%（Non-Condensing）
	Environmental Light		0~100000LUX

Product Files

·Provide User Manual

You can download the GM67 user manual from this website link:

GM67 Operation Video on Youtube: https://youtu.be/nlZAcnFSypo

GM65 Operation Video on Youtube: https://youtu.be/8S2HvjtlIe4
