GROW GM803 Series Small Cheap DC3.3V USB/TTL232 Interface Barcode Scanner Module 1D/2D QR Bar Code Reader PDF417 for Arduino

stars, based on 0reviews
$12.00now$10.90 piece
Quantity Price
10+ $10.46
999items available
Contact Us
OR
Description

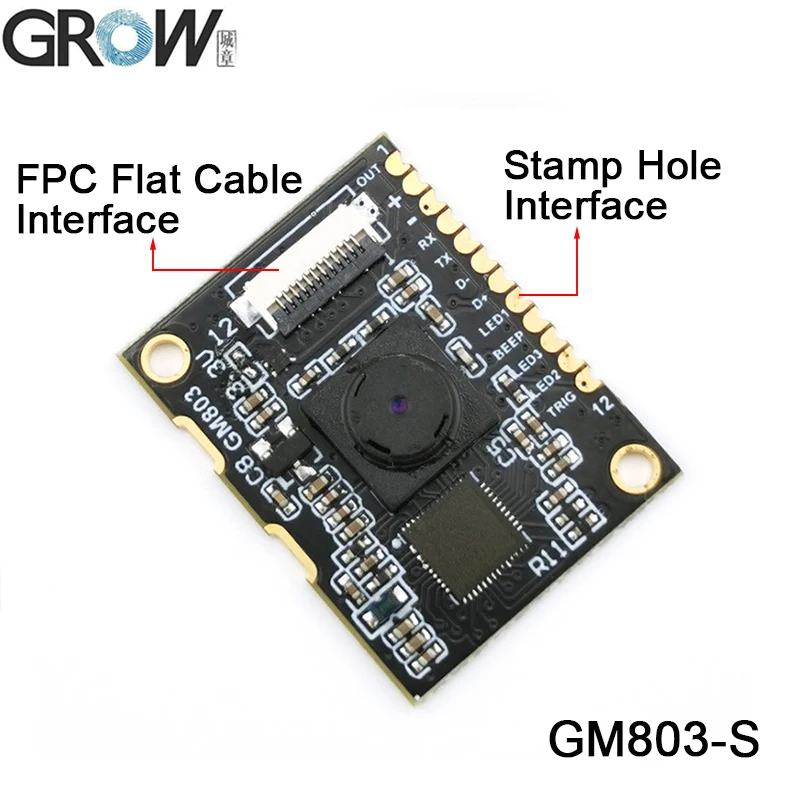

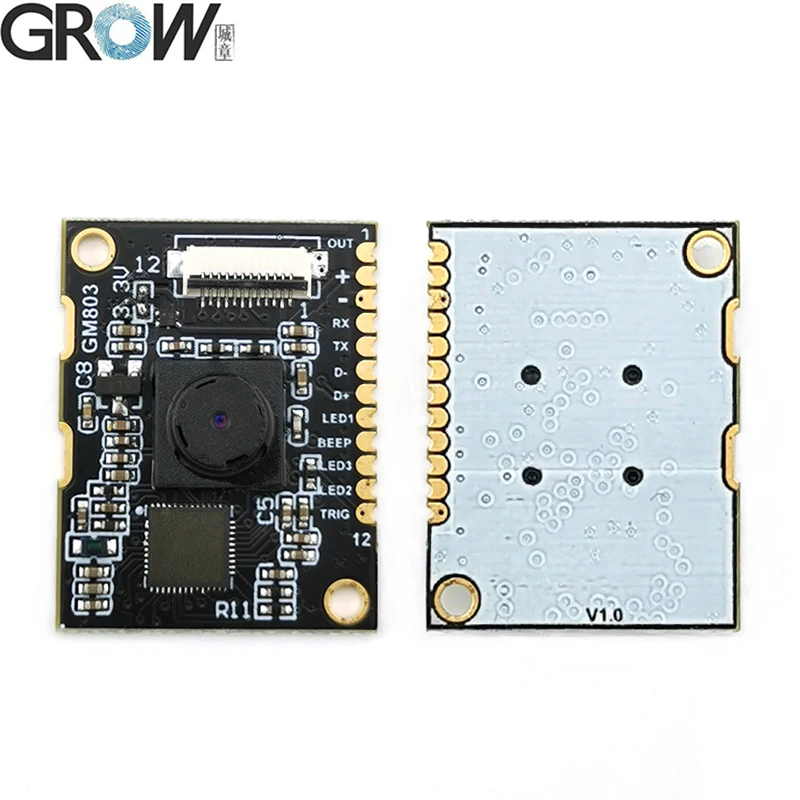

GM803 serial have GM803-S and GM803-L model.

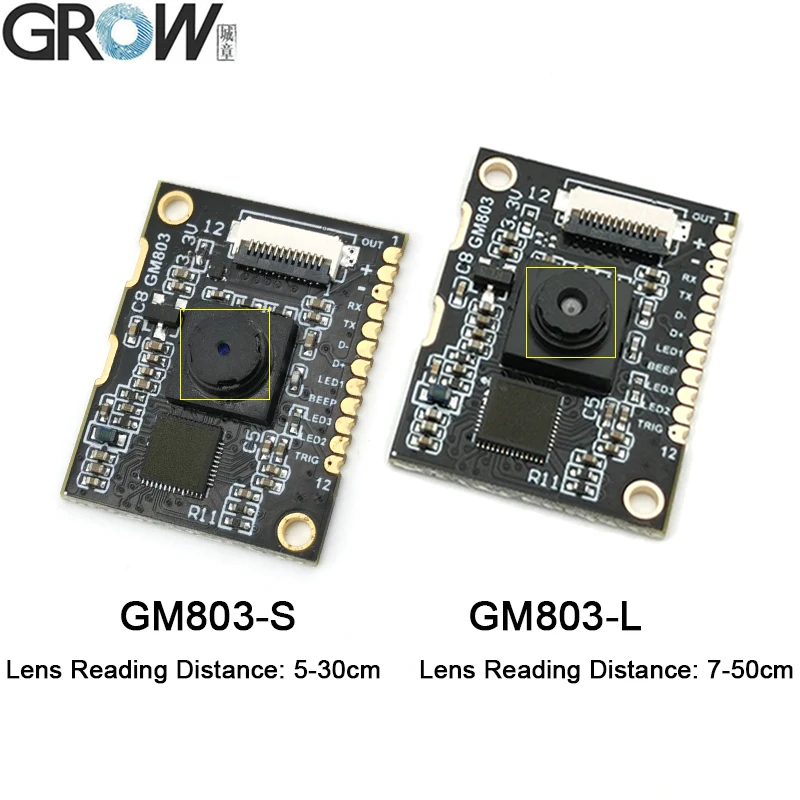

The only difference between GM803-S and GM803-L is the lens.

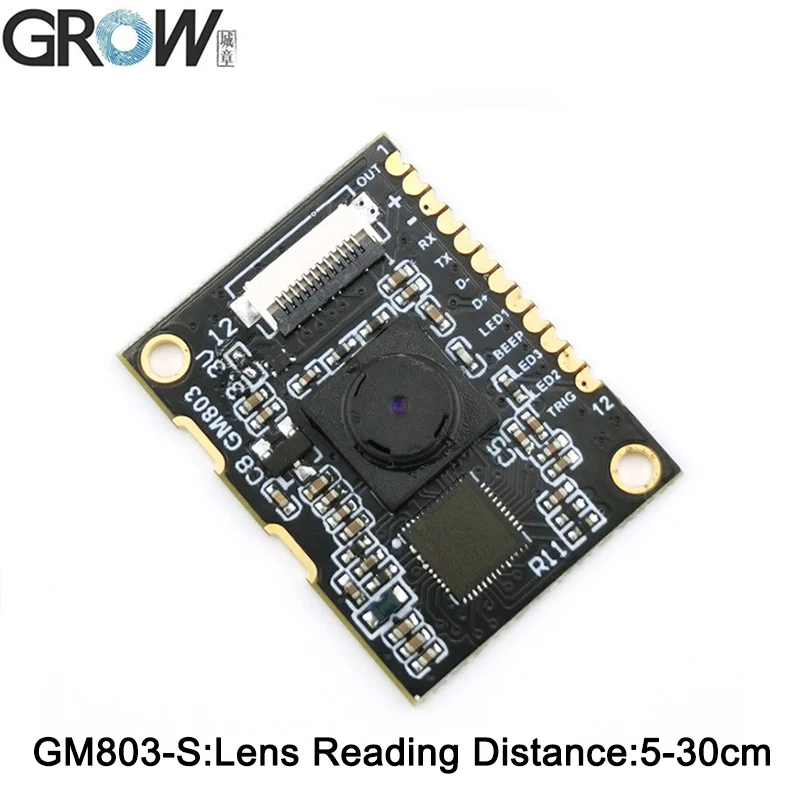

GM803-S lens reading distance is 5-30cm.
GM803-L lens reading distance is 7-50cm.
(The actual data depends on the size and content of the code)

GM803 serial bar code reader module is a high performance scanner, can read 1D bar code easily and read 2D bar code with high speed. It also wins high scan speed for linear code, even for bar code on paper or screen.

GM803 serial bar code reader module is an advanced bar code decoding algorithm which developed on image recognition algorithm, can easily and accurately read bar code, simplify secondary development.



Parameter

Performance

Sensor

CMOS

Scan Mode

640*480

Lighting

It is recommended to use white light as lighting, should be uniform and soft

Indicator Light

It is recommended to use green/blue light as read successfully


Read Code Type

1D: EAN-13, EAN-8, UPC-A, UPC-EISSN, ISBN, CodaBar,Code 128,

Code93, ITF-14, ITF-6, Interleaved 2 of 5,Industrial2of5,

Matrix2of5, Code 39,Code11, MSI-Plessey，GS1-Databar (RSS)

2D: QRCode, DataMatrix, PDF417

GM803-S

Reading Distance


5-30cm

GM803-L

Reading Distance


7-50cm

Contrast*

＞25%

Scan Angle**

Roll:360°Pitch:65°Yaw:65°

Viewing Angle

67°(Horizontal)53°(Vertical)

Accuracy of reading*

≥10mil



Mechanical/electrical Parameters:

Parameter

Performance

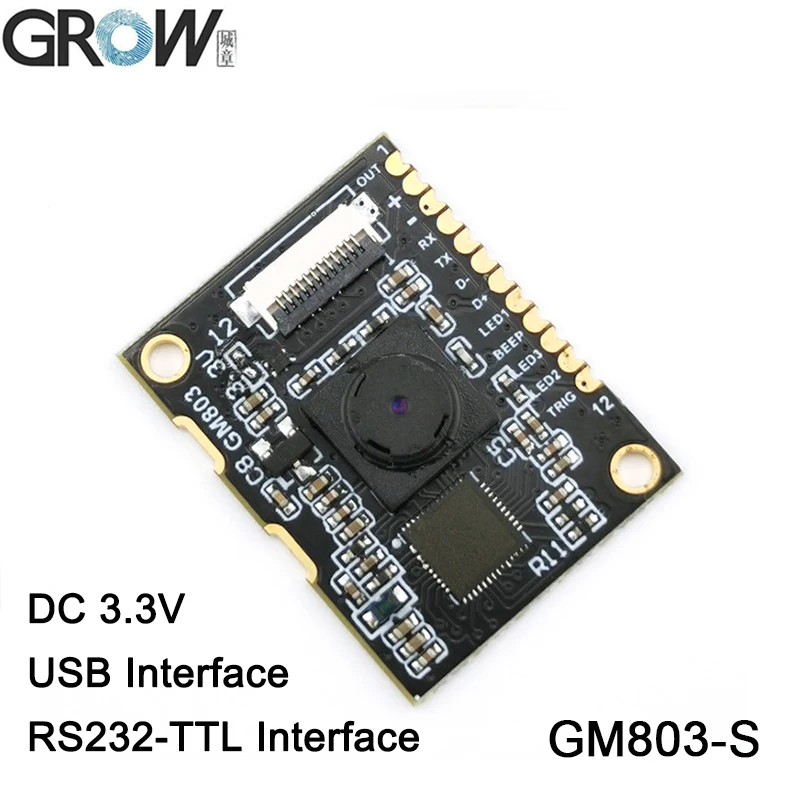

Interface

TTL-232/USB

Size(mm)

26*20 mm

Weight

2g

Prompting mode

Buzzer LED Indicator

OperatingVoltage

3.3V

Operation Current

70mA(Max)

Standby Current

≤6mA(Typical)

Startup time

≤250mS (Typical)



Environmental Parameters:

Parameter

Performance

Operatingtemperature

-20℃~60℃

Storage Temperature

-40℃~+100℃

Operating Humidity

5%~95%（Non-Condensing）

Environmental Light

Normal indoor light source

Fall

Withstand 1.2 m drop on concrete floor (50 times 1.2 m drop on concrete floor repeatedly)




·Provide User Manual

You can download the GM803 Serial user manual from this website link:







Brand Name:
grow
Model Number:
GM803
Interface:
USB2.0 and UART
Operating Voltage:
3.3 V
Operating Current:
70
Resolution:
10mil
Size:
26*20mm
Weight:
2g
