GROW GM810 Series DC5V 1D/2D QR Barcode Scanner Module USB/UART Interface For Arduino Windows Desktop Mobile Payment Reader

stars, based on 0reviews

~~$20.00~~$18.00 piece

Lens Reading Distance

Quantity Price

1+ $18.00

10+ $17.28

Description
Item specifics

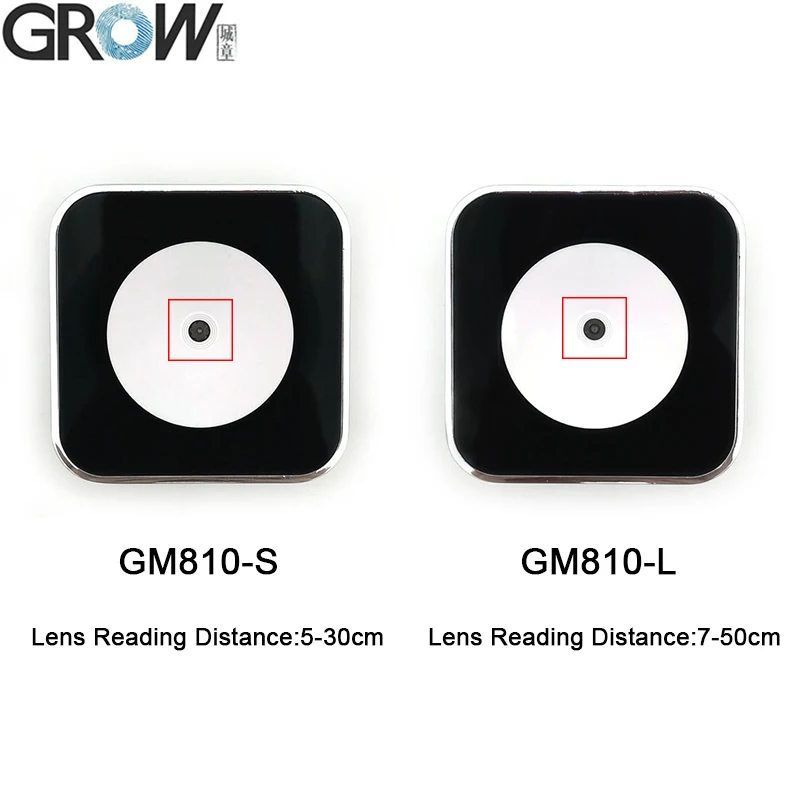

GM810 series have GM810-S and GM810-L model.

The only difference between GM810-S and GM810-L is the lens.

GM810-S lens reading distance is 5-30cm.

GM810-L lens reading distance is 7-50cm.

(The actual data depends on the size and content of the code)

GM810 series bar code reader module is a high performance scanner, can read 1D bar code easily and read 2D bar code with high speed. It also wins high scan speed for linear code, even for bar code on paper or screen.

GM810 series bar code reader module is an advanced bar code decoding algorithm which developed on image recognition algorithm, can easily and accurately read bar code, simplify secondary development.

Parameter	Performance
Sensor	CMOS
Scan Mode	640*480

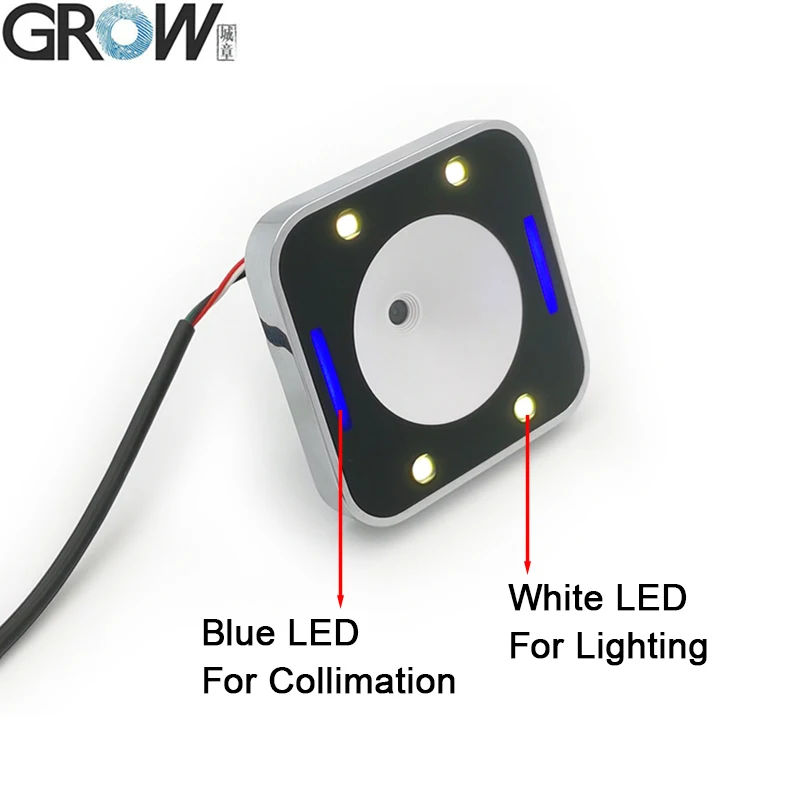

Lighting	White LED
Collimation Light	Blue LED
Read Code Type	1D: EAN-13, EAN-8, UPC-A, UPC-EISSN, ISBN, CodaBar,Code 128, Code93, ITF-14, ITF-6, Interleaved 2 of 5,Industrial2of5, Matrix2of5, Code 39,Code11, MSI-Plessey, GS1 Composite,GS1-Databar (RSS)
	2D: QRCode, DataMatrix, PDF417
GM810-S Reading Distance	5-30cm
GM810-L Reading Distance	7-50cm
Contrast*	＞25%
Scan Angle**	Roll:360°Pitch:65°Yaw:65°
Viewing Angle	67°(Horizontal)53°(Vertical)
Accuracy of reading*	≥10mil

Mechanical/electrical Parameters:

Parameter	Performance

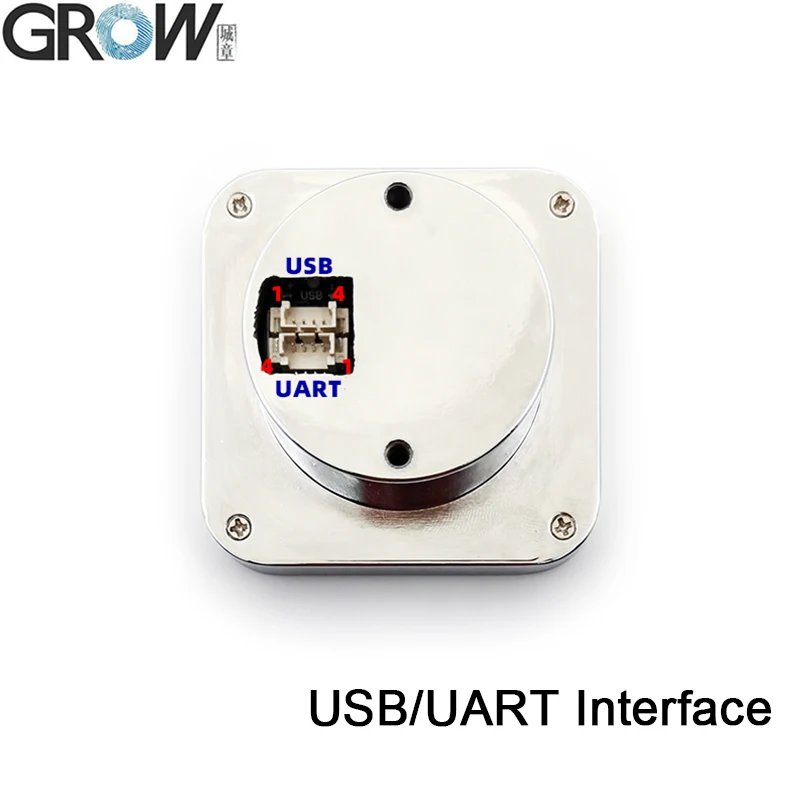

Interface	TTL-232/USB
Size(mm)	565625.9 mm
Weight	90g
Prompting mode	Buzzer LED Indicator

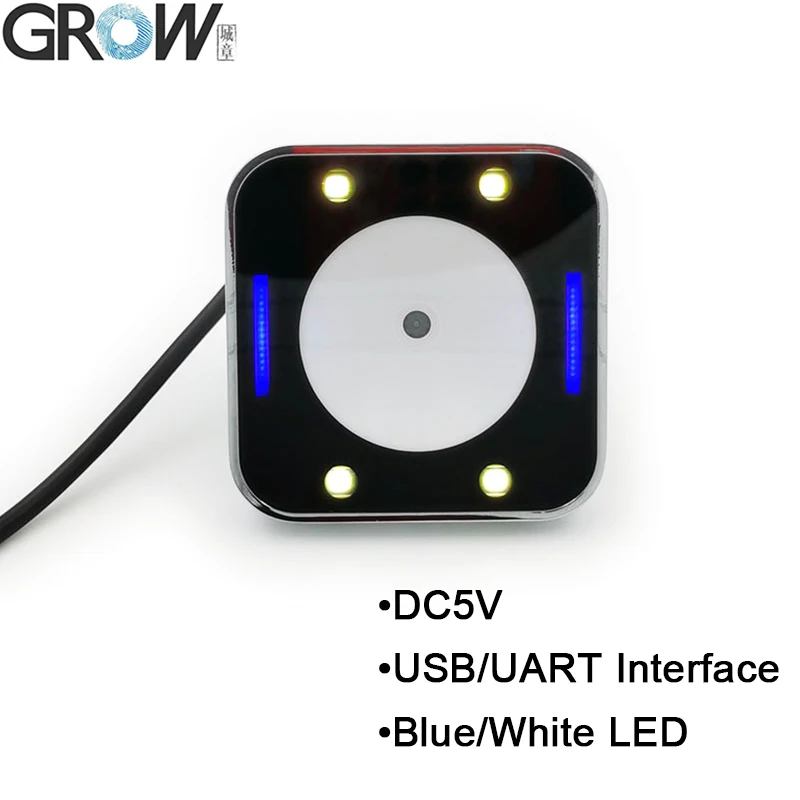

OperatingVoltage	5V
Operation Current	125mA(Max), Max Current 180mA
Standby Current	≤6mA(Typical)
Startup time	≤250mS (Typical)

Environmental Parameters:

Parameter	Performance
Operatingtemperature	-20℃~+60℃
Storage Temperature	-40℃~+70℃
Operating Humidity	5%~95%（Non-Condensing）
Environmental Light	Normal indoor light source
Fall	Withstand 1.2 m drop on concrete floor (50 times 1.2 m drop on concrete floor repeatedly)

·Provide User Manual

You can download the GM810 Series user manual from this website link:

https://www.dropbox.com/sh/buysgr2aeutuub3/AADsvupiGseFm-6IowMBWGCOa?dl=0

GM810 Operation Video on Youtube: https://youtu.be/MgGnv7GYv2A

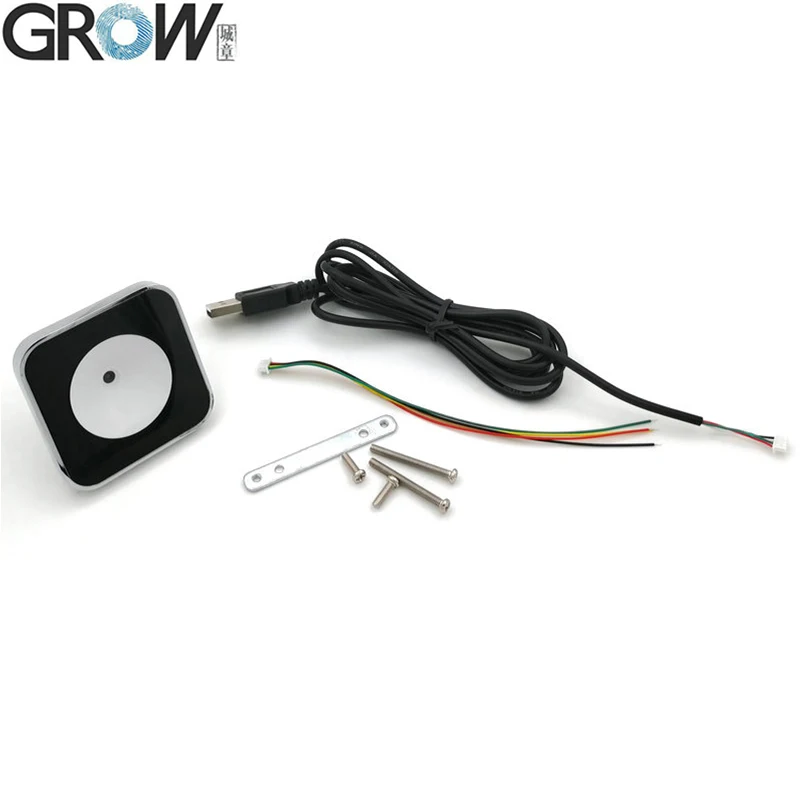

1* Barcode Scanner+1.25 mm Serial Cable+USB Cable+Screws
