GROW GM812 Series 1D/2D QR Barcode Scanner Reader DC5V USB/UART Interface For Arduino Windows PDF417 Qr Bar Code Module

stars, based on 0reviews

~~$20.00~~$17.00 piece

Lens Reading Distance

Quantity Price

1+ $17.00

10+ $16.32

Description
Item specifics

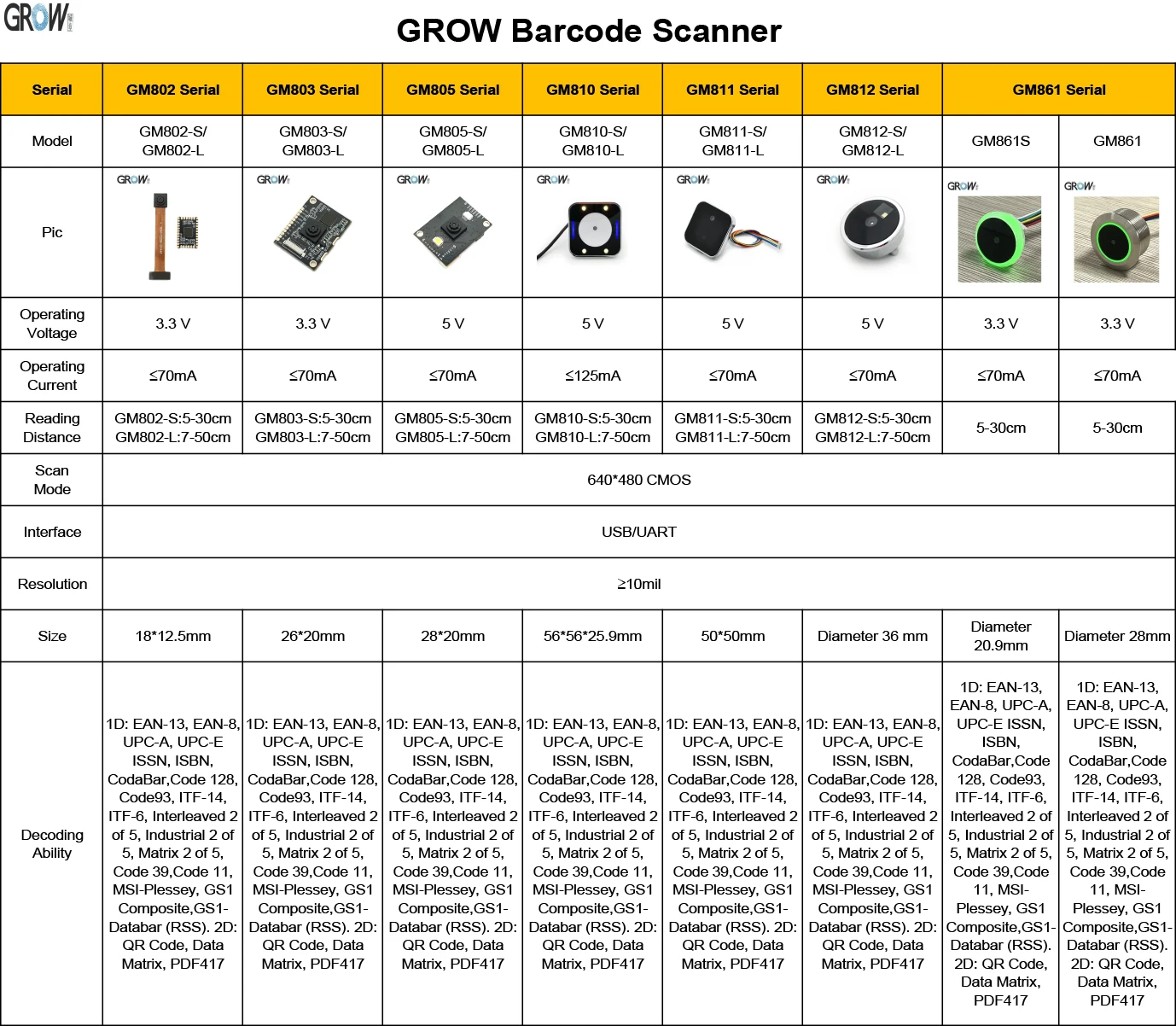

GM812 series have GM812-S and GM812-L model.

The only difference between GM812-S and GM812-L is the lens.

GM812-S lens reading distance is 5-30cm.

GM812-L lens reading distance is 7-50cm.

(The actual data depends on the size and content of the code)

GM812 series bar code reader module is a high performance scanner, can read 1D bar code easily and read 2D bar code with high speed. It also wins high scan speed for linear code, even for bar code on paper or screen.

GM812 series bar code reader module is an advanced bar code decoding algorithm which developed on image recognition algorithm, can easily and accurately read bar code, simplify secondary development.

Parameter	Performance
Sensor	CMOS
Scan Mode	640*480
Lighting	White LED
IndicatorLight	Blue LED
Read Code Type	1D: EAN-13, EAN-8, UPC-A, UPC-EISSN, ISBN, CodaBar,Code 128, Code93, ITF-14, ITF-6, Interleaved 2 of 5,Industrial2of5, Matrix2of5, Code 39,Code11, MSI-Plessey, GS1 Composite,GS1-Databar (RSS)
	2D: QRCode, DataMatrix, PDF417
GM812-S Reading Distance	5-30cm
GM812-L Reading Distance	7-50cm
Contrast*	＞25%
Scan Angle**	Roll:360°Pitch:65°Yaw:65°
Viewing Angle	67°(Horizontal)53°(Vertical)
Accuracy of reading*	≥10mil

Mechanical/electrical Parameters:

Parameter	Performance
Interface	TTL-232/USB
Size(mm)	Diameter 36 mm(The diameter of the installation hole is 32mm)
Weight	26g
Prompting mode	Buzzer LED Indicator
OperatingVoltage	5V
Operation Current	≤70mA
Continuous Reading Peak Current	≤120mA
Standby Current	≤6mA(Typical)
Startup time	≤250mS (Typical)

Environmental Parameters:

Parameter	Performance
Operatingtemperature	-20℃~+60℃
Storage Temperature	-40℃~+70℃
Operating Humidity	5%~95%（Non-Condensing）
Environmental Light	Normal indoor light source
Fall	Withstand 1.2 m drop on concrete floor (50 times 1.2 m drop on concrete floor repeatedly)

·Provide User Manual

You can download the GM812 Series user manual from this website link:

https://www.dropbox.com/sh/buysgr2aeutuub3/AADsvupiGseFm-6IowMBWGCOa?dl=0

GM812 Operation Video on Youtube: https://youtu.be/NvV9cFb6p-A

1* Barcode Scanner+1.25 mm Serial Cable+Screws
