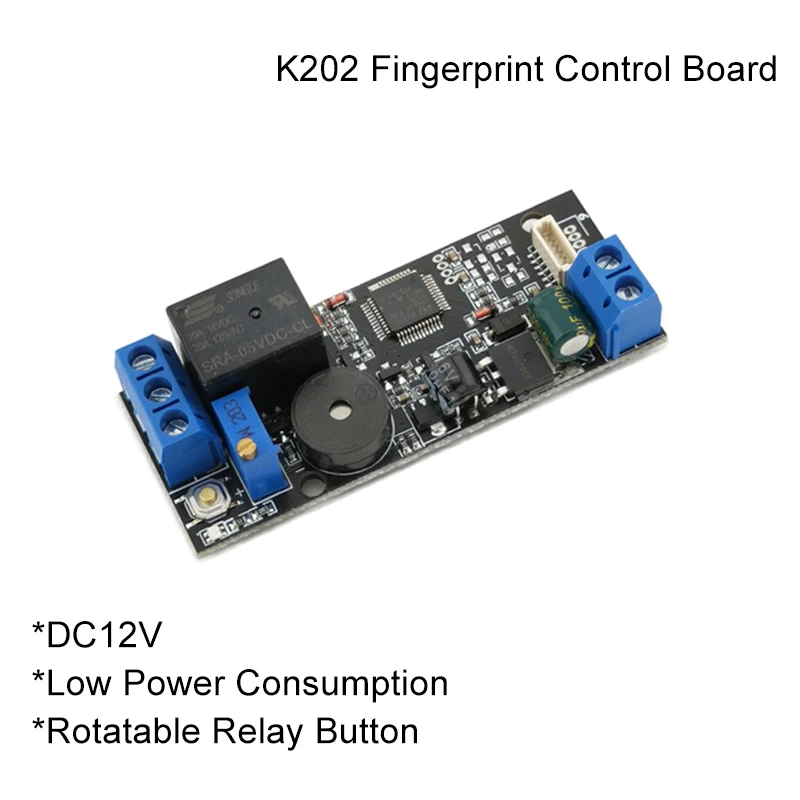

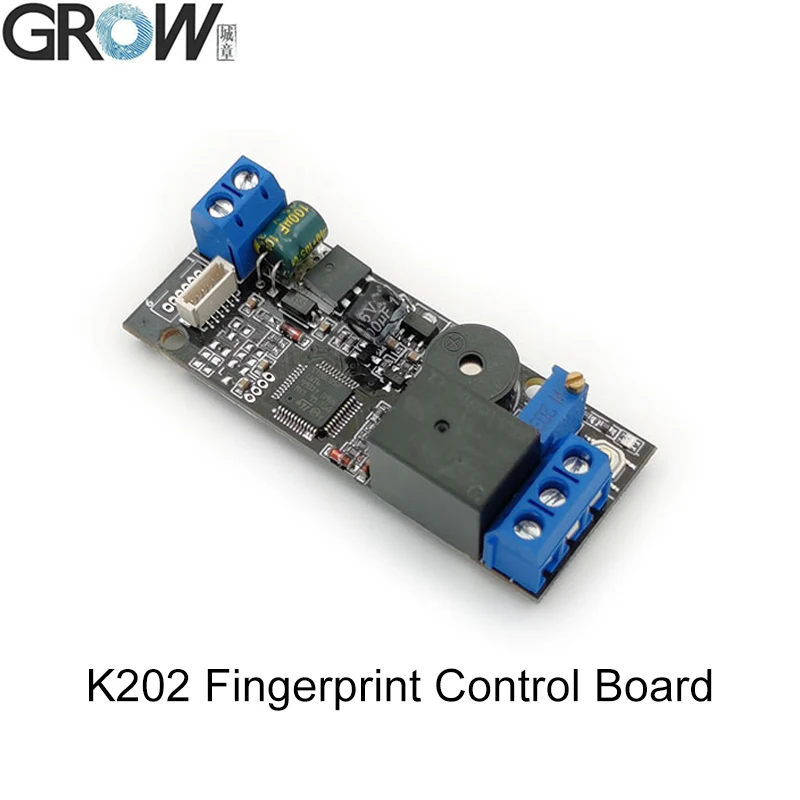

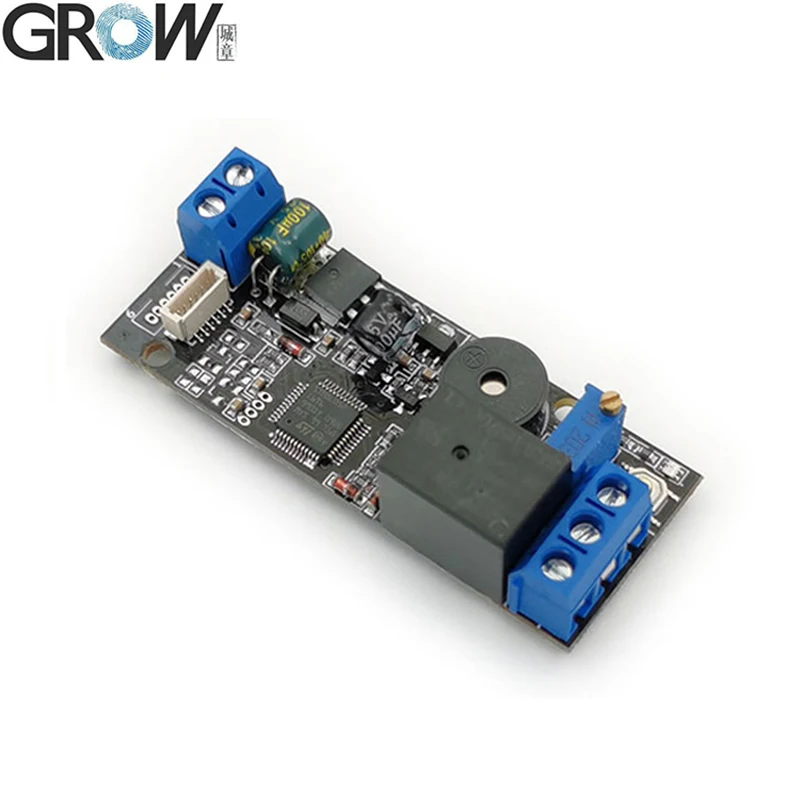

GROW K202 DC10-24V Low Power Consumption Fingerprint Control Board Switch Fingerprint Access Control System

stars, based on 0reviews

~~$9.90~~$7.50 piece

Quantity Price

10+ $7.20

Description
Item specifics

·P1: Power supply: DC10V--24V
·Output: Relay(Max. current:10A)
·Standby current: 15uA
·Fingerprint capacity: 120 pieces
·Size: 64.4*25.4mm
·P2: MX 1.0mm space 6 Pin Fingerprint Module(can connect R502,R502-A,R503)
·P3: MX 1.25mm space 6 Pin Fingerprint Module(can connect R300,R301T,R303,R303T,R305,R306,R307,R501)

K202 is designed for low power consumption, the power supply is DC10V-24V, the relay time can be adjusted by rotating the button, relay time: 0.5-13 seconds.

It is very easy to register fingerprint, just need to press SET button to register fingerprint and long press SET button to back to factory default.

1.SET Button:

Press SET button shortly,blue indicator light flash fast and system in register state, put the finger on fingerprint collection area, fingerprint register successful when hearing music. Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds.

2.Back to factory default:

Press SET button until hear “Di” long beep and music,means initialization operation successful.

3.Set Relay Time:

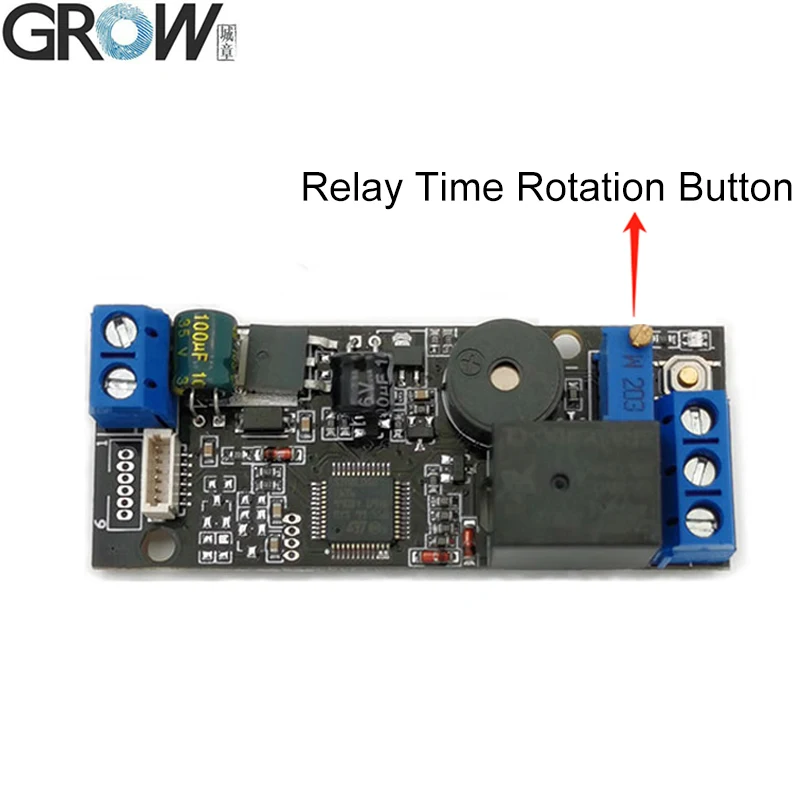

Rotate K2 to set the closing time of the relay from 0.5 to 13 seconds. The relay is contact output, switch signal, no voltage output.

4.Usage:

Press the finger,the relay closes after the fingerprint passes, and the closing time is determined by K2.

Note: 1. All indicator lights are off in standby state, and the lights are on in working state;

2. Any fingerprint can be used in the factory state, but the function will be invalid after the fingerprint is registered.

K202 can be used together with R300,R301T,R303,R303T,R305,R306,R307,R501,R502,R502-A,R503 fingerprint module

·Provide User Manual

You can dowload the K202 user manual from this website link:

https://www.dropbox.com/sh/9itshhkx0r9mdyt/AABPH-Dhleve3A1Mn5ZA34pCa?dl=0

K202-A

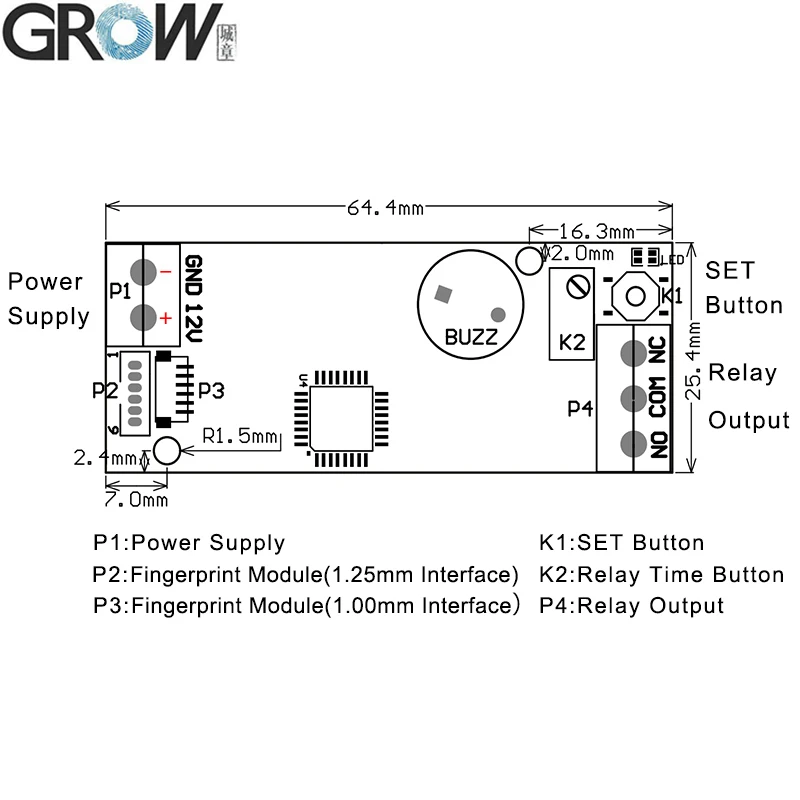

K202 Circuit board diagram

K202-C

K202-D--

K202-E

K202-F

Package Listing

K202-A

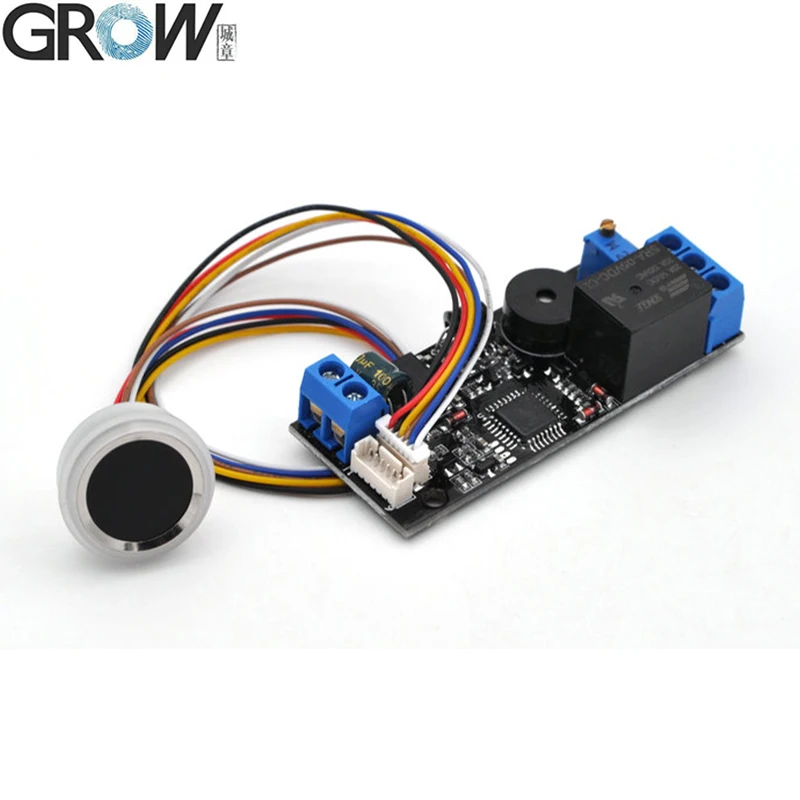

K202 can be used together with R301T capacitive fingerprint module

K202+R301T

K202 can be used together with R307 optical fingerprint module

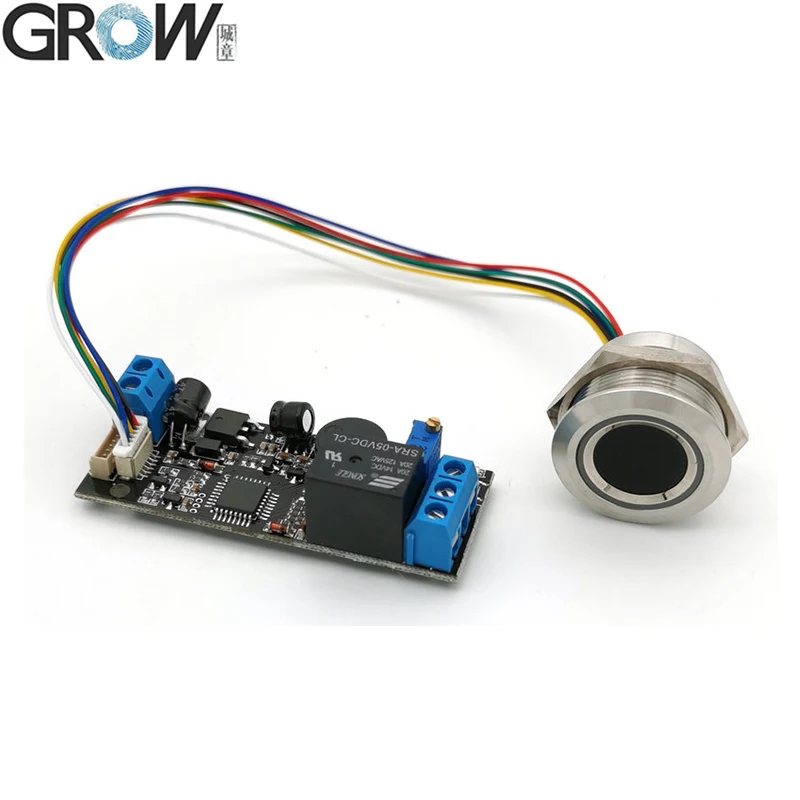

K202 can be used together with R501 capacitive fingerprint module

K202 can be used together with R502 capacitive fingerprint module

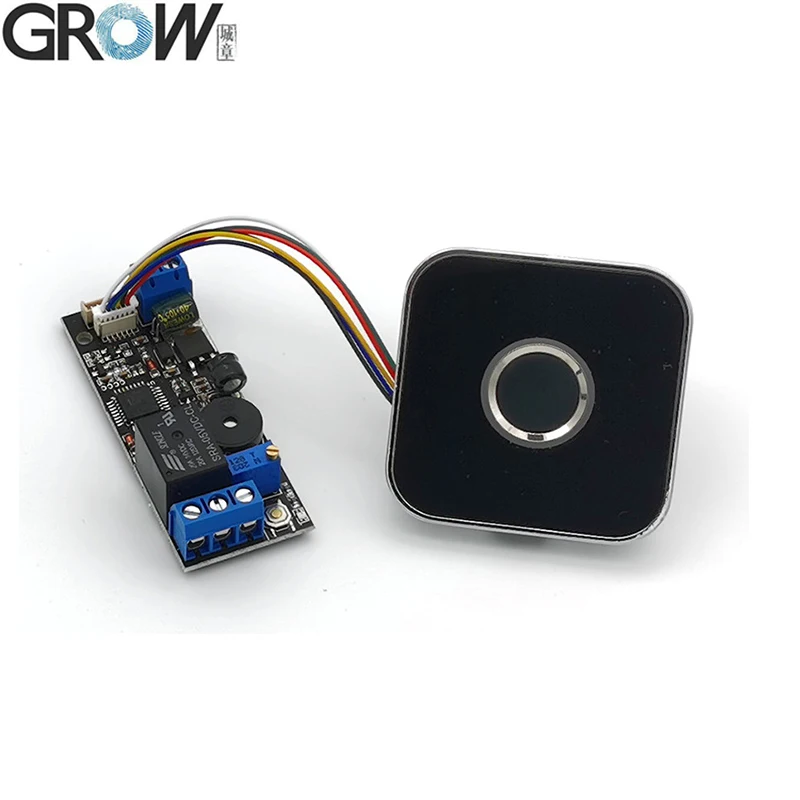

K202 can be used together with R502-A capacitive fingerprint module

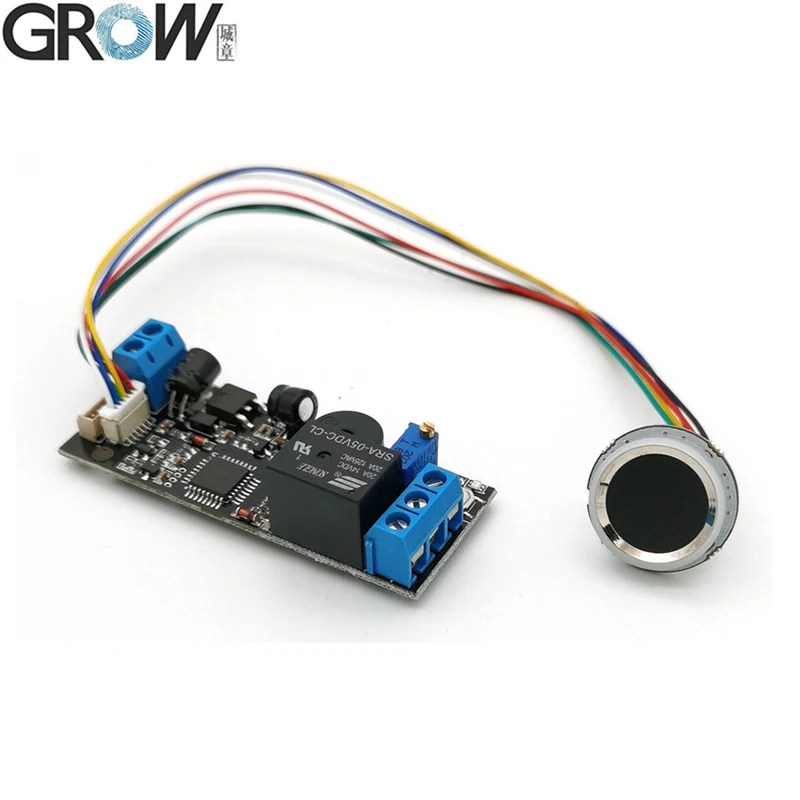

K202 can be used together with R503 capacitive fingerprint module
