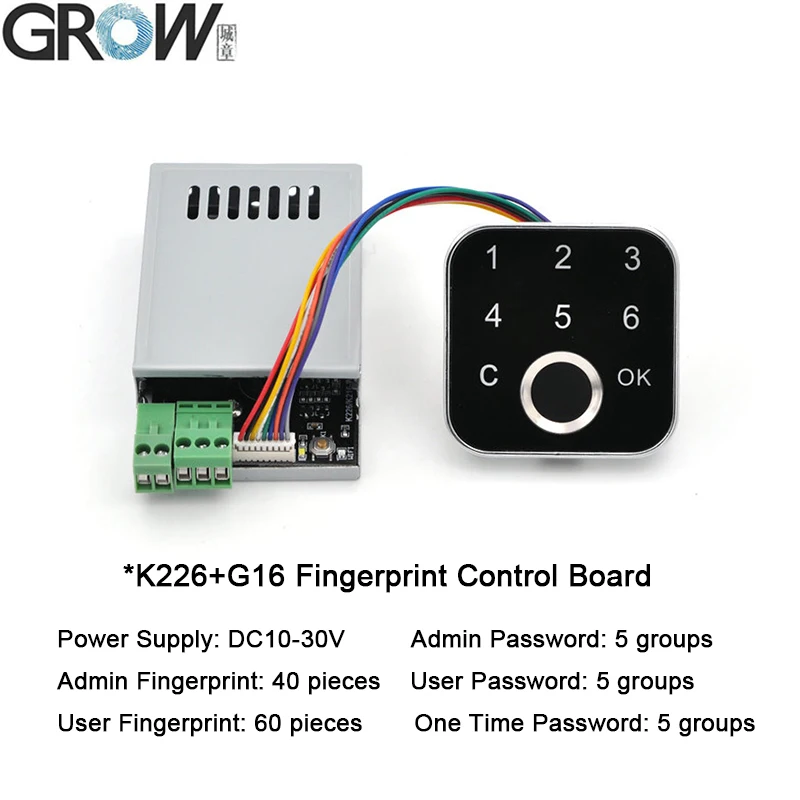

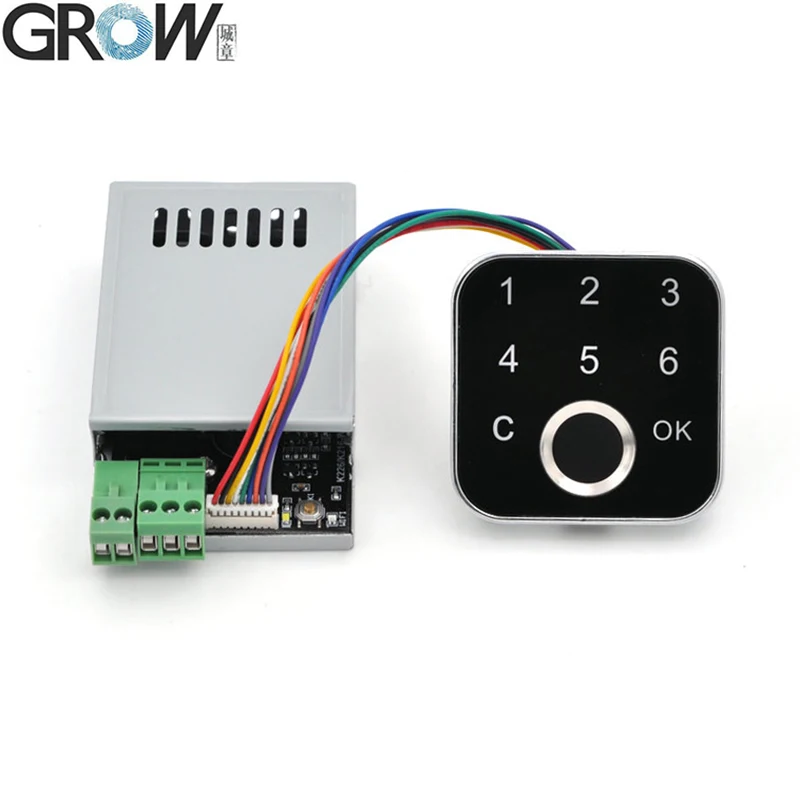

GROW K226+G16 DC10-30V Admin/User Fingerprint Password Access Control Board Relay Output For Door Access Control System

stars, based on 0reviews
$26.00now$24.60 piece
Quantity Price
10+ $23.62
999items available
Contact Us
OR
Description




DC10-30V, Rekay output, Relay Time: 0.5s-30min, Have admin/user fingerprint and admin/user password. Can use admin fingerprint or password to manage the user fingerprint/password and relay mode. Easy to install and meet the needs of different applications.


Technical Parameter:
·Power supply: DC10-30V
·Stand by current: 6mA(DC12V)
·Output: Relay(Max. current: 10A)
·Administrator fingerprint:40 pieces
·User fingerprint:60 pieces(30pieces*2 database)
·Administrator Password: 5 groups
·User Password: 5 groups (Length: 3-9 bits)
·One-time Password: 5 groups
·Password Using: Password【OK】
·Management: SET Button or Fingerprint or Password

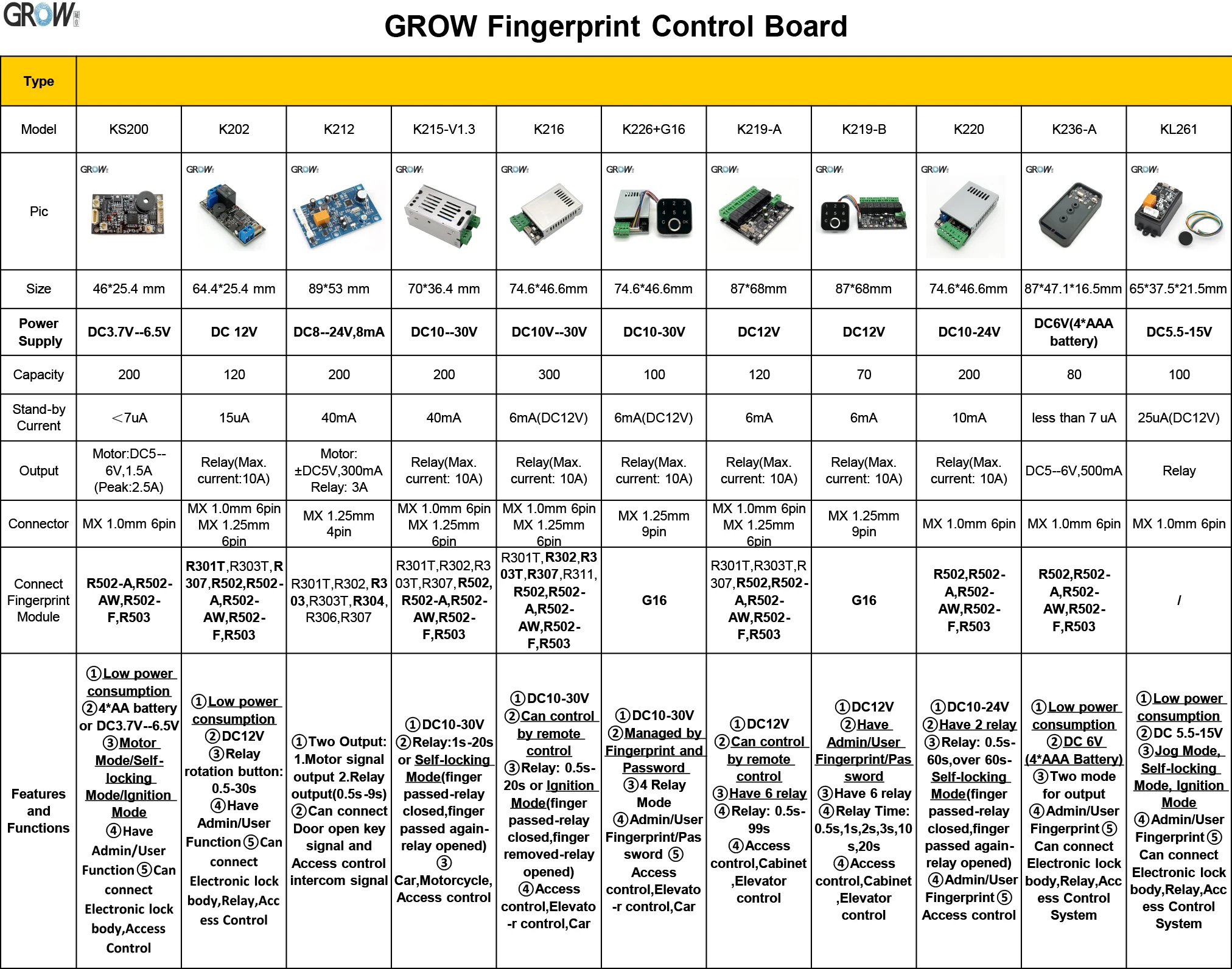

K226 Fingerprint Control Board only can connect with G16.

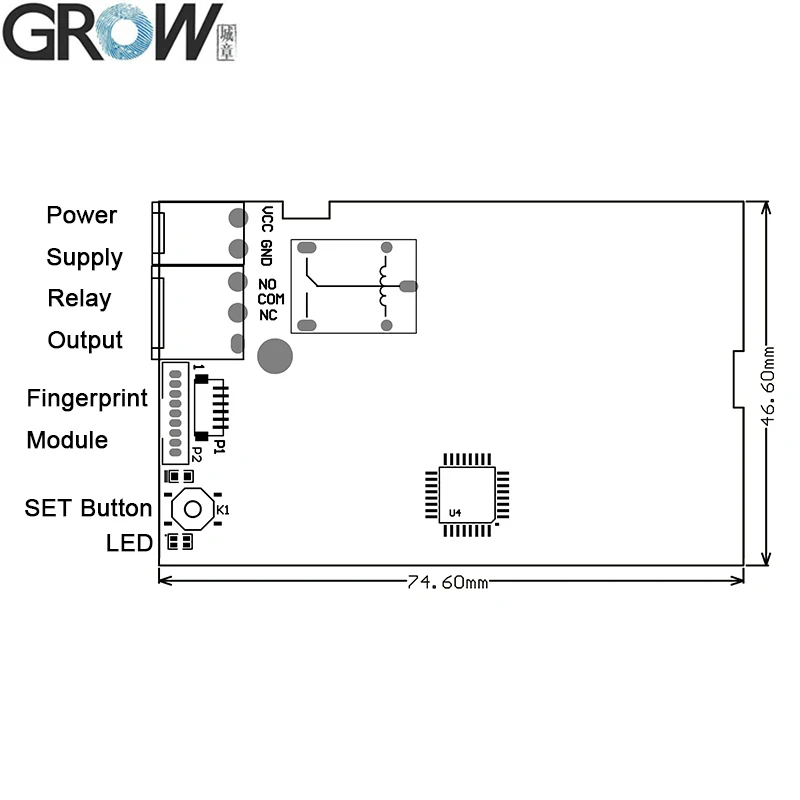

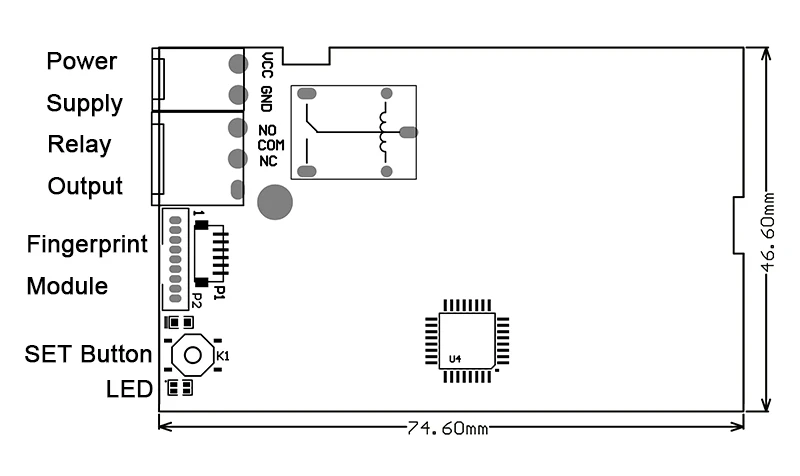

K226 Circuit board diagram

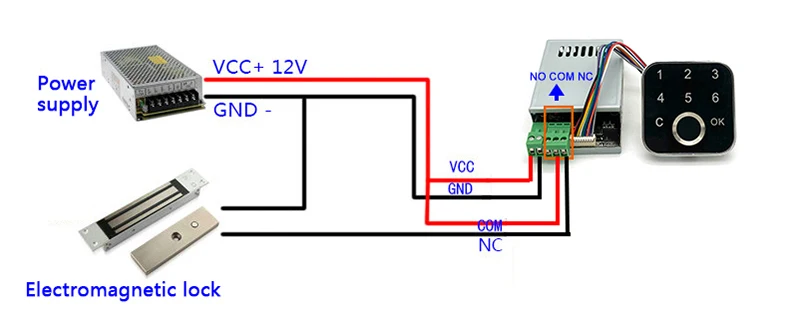

K226 Connection reference diagram



1.SET Button
1.1 Register Administrator Fingerprint:
Press SET button shortly,blue indicator light flash fast means system in register state, press several times for each finger in the collection area,fingerprint register successful when hearing music. Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds to exit. After the 40 pieces of administrator fingerprint is stored full, then press the SET button will register user fingerprints.
1.2 Back to Factory Mode: Long press the SET button about 5-6s, hear “Di” long beep and music(the indicator light on the fingerprint panel blinks from pink to red to blue), means initialization operation successful.
1.3 Relay Time Adjustment: Long press the SET button about 2s,hear “DiDiDi” beep,loosen your finger, the pink indicator light flash fast means enter in the relay time adjustment mode,then press the SET button again,at this point, the time to press the SET button is the required relay time. Eg.: If press the SET button for 5s,then the closing time of relay is 5 seconds.

2.Keyboard Setting
For all operation settings,need to press the administrator fingerprint or administrator password first. After relay pass, then can edit.
Password Using: E.g.:Add Administrator Fingerprint: Password【OK】1【OK】

2.1. Add Administrator Fingerprint: Pass the administrator's fingerprint/password,enter in edit mode:Press: 1【OK】,blue indicator light flash fast, press several times for each finger in the collection area, fingerprint register successful when hearing music,fingerprint can be registered continuously,fingerprint inventory is full when hearing “DiDiDi” and red light flashing
Note: The administrator fingerprint cannot be repeated with the user fingerprint. If repeated, there will be error report and red light flashing.

2.2. Clear the System and Back to Factory Mode: Pass the administrator's fingerprint/password,enter in edit mode: Press: 1【C】(Long press C)

2.3. Set Administrator Password:Pass the administrator's fingerprint,enter in edit mode: Press: 2【OK】New Password【OK】(Can set 5 groups)

2.4. Delete Administrator Password:Pass the administrator's fingerprint/password,enter in edit mode: Press: 2【C】(Long press C)

2.5. Set User Fingerprint:Pass the administrator's fingerprint/password,enter in edit mode:Press: 3【OK】Database position (1 or 2)【OK】, E.g.: 3【OK】1【OK】,blue indicator light flash fast, press finger for each fingerprint, fingerprint register successful when hearing music,fingerprint can be registered 30 pieces continuously(each database capacity is 30 pieces),fingerprint inventory is full when hearing “DiDiDi” and red light flashing
Note: The user fingerprint cannot be repeated with the administrator fingerprint. If repeated, there will be error report and red light flashing.

2.6. Delete User Fingerprint:Pass the administrator's fingerprint/password,enter in edit mode:Press: 3【C】Database position (1 or 2)【C】(Long press the second C)

2.7. Set User Password:Pass the administrator's fingerprint/password,enter in edit mode:
Press: 4【OK】New Password【OK】(Can set 5 groups)

2.8. Delete User Password:Pass the administrator's fingerprint/password,enter in edit mode:Press: 4【C】(Long press C)

2.9. Relay Mode Setting:Pass the administrator's fingerprint/password,enter in edit mode: Press: 5【OK】Relay Mode(1-4)【OK】
Mode 1: The relay time is adjusted by SET button:0.5s-30min;
Mode 2: The relay opens when the finger is pressed, and closes after the finger is released.
Mode 3: Press finger-Relay open, then press finger again-Relay closed. Do not save relay status when power is cut off
Mode 4: Press finger-Relay open, then press finger again-Relay closed. Save relay status when power is cut off.

3.0. Set One-time Password:Pass the administrator's fingerprint/password,enter in edit mode:Press: 6【OK】New Password【OK】
Can be set 5 groups, will be invalid after being used once

3.1. Delete One-time Password:Pass the administrator's fingerprint/password,enter in edit mode:Press: 6【C】(Long press C) ,delete all one time password

Note:
1.When register the fingerprint, the user fingerprint cannot be repeated with the administrator fingerprint. If repeated, there will be error report and red light flashing.
2.The user password cannot be repeated with the administrator password. If repeated, there will be error report.
3.When the one-time password repeated with the administrator password and user password, will use the one-time password first.



·ProvideFree Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual

You can dowload the K226 user manual from this website link:

K226+G16 Operation Video on Youtube:https://youtu.be/WXm4cbBPpwI
Adjust Relay Time Video on Youtube:https://youtu.be/mno1MdJOpc0





G16 Size

G16 Installation Drawing



1*K226 Fingerprint Control Board+1*G16 Fingerprint Module+Screws

Brand Name:
grow
Model Number:
K226+G16
Fingerprint Capacity:
Administrator fingerprint:40 pieces,User fingerprint:60 pieces
Power Supply:
DC 10V--30V
Standby current:
6mA(DC12V)
Output:
Relay(Max. current:10A)
Administrator Password:
5 groups
User Password:
5 groups
One-time Password:
5 groups
