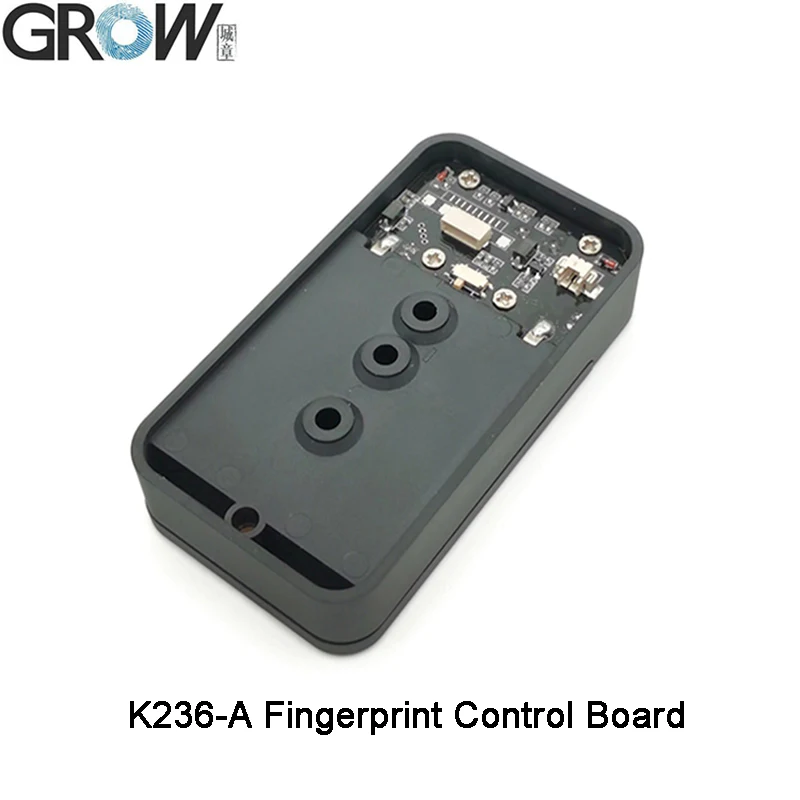

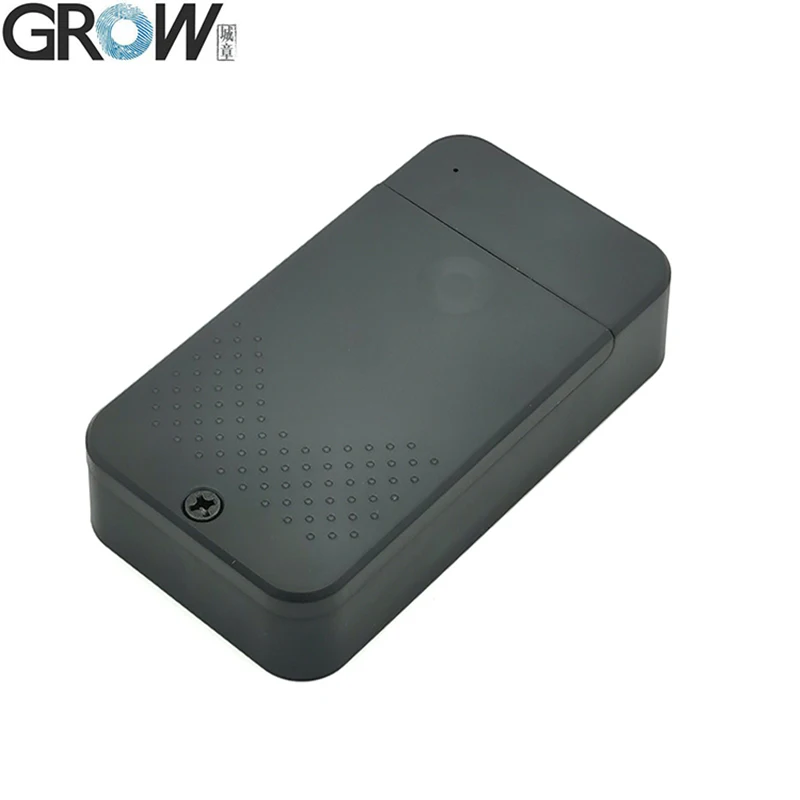

GROW K236-A DC6V 4*AAA Battery Case With Fingerprint Control Board Admin/User Fingerprint For Door Access Control System
Description
*K236-A fingerprint control board, using battery box and circuit board integrated and low power consumption design.
*The power supply is 4*AAA battery.
*Have administrator and user fingerprint function.
*Two output modes can be selected, suitable for electronic lock body, relay and other equipment.
*K236-A can be used with R502, R502A, R502AW, R503 fingerprint module.
·Power supply: DC 6V (4*AAA Battery)
·Control Board Stand by current: <7uA
·Fingerprint capacity:
Administrator fingerprint: 20 pieces
User fingerprint: 60 pieces
·Output: DC5-6V, 300mA
·Size:87*47.1*16.5mm
1.Register Administrator Fingerprint: Press SET button shortly,system in administrator register status and blue indicator light flash fast, put the same finger with multiple times in fingerprint collection area until hearing music means fingerprint register successful. Fingerprint can be registered continuously. If no need for adding fingerprint, waiting a few seconds to exit.
2.Register User Fingerprint: Press the administrator fingerprint until the blue indicator light flash fast and hear the music,means can add user fingerprint. Put the same user finger with multiple times in fingerprint collection area until hearing music means fingerprint register successful. Fingerprint can be registered continuously. If no need for adding fingerprint, waiting a few seconds to exit.
3.Delete User Fingerprint: Press the administrator fingerprint until the red indicator light flash fast and hear “Di” ,move away the finger,the red indicator light flash slowly,press finger again,hear “Di-Di-Di” and music, means user fingerprints are deleted.
4.Back to Factory Default: Long press the SET button until hear “Di-Di-Di” beep and release the button,means initialization operation successful.
5.Mode Selection:set by the toggle switch:
[Right]: Output DC5V and keep 0.5 second; stop 5 seconds,then minusvoltage outputted and keep 0.5 seconds.
[Left]: Keeping output DC5V until removing the finger
Note:
1.When the voltage is less than DC4.7V, the red light lightens, means the low voltage warning.
2.In the “[Left]” mode,when need to register/delete user fingerprint,after press the administrator fingerprint successfully,lifting the finger then press the same administrator finger again until the blue/red indicator light flash fast and hear the music,then it can register/delete user fingerprint.
3.Any fingerprint can be used when factory default, and this function disabled after fingerprint registered.
·ProvideFree Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual
·Provide User Manual
You can dowload the K236-A user manual from this website link:
https://www.dropbox.com/sh/9itshhkx0r9mdyt/AABPH-Dhleve3A1Mn5ZA34pCa?dl=0
If need SDK files,pls contact us.

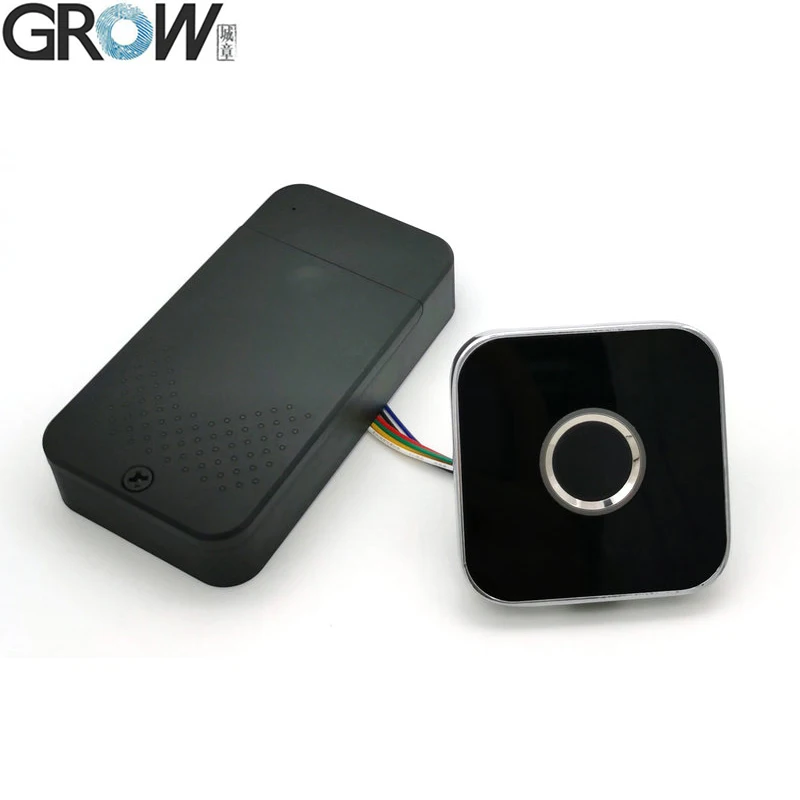

If need fingerprint module, K236-A can be used together with R502-A fingerprint module
If need fingerprint module, K236-A can be used together with R502-AW fingerprint module
If need fingerprint module, K236-A can be used together with R503 fingerprint module
K236-A Fingerprint Control Board(Not including the battery)
- Brand Name:
- grow
- Model Number:
- K236-A
- Fingerprint capacity:
- 80
- Power Supply:
- DC 6V (4*AAA Battery)
- Standby current:
- <7uA
- Output:
- DC5-6V, 300mA
