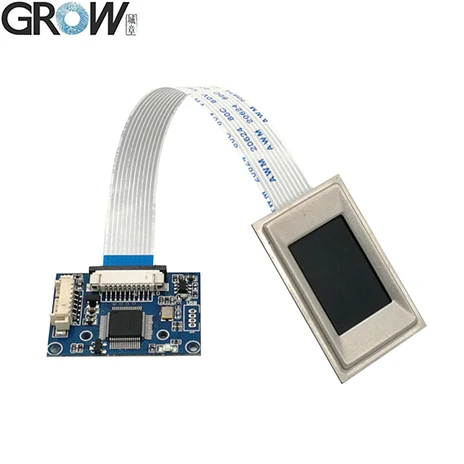

GROW R311 Big Size Sensor Area Capacitive Fingerprint Access Control Module Scanner For Arduino

stars, based on 0reviews
$59.89now$58.90 piece
Quantity Price
10+ $56.54
999items available
Contact Us
OR
Description

Description

·Communication interface : USB and UART
·1:N Identification (One-to-Many)
·1:1 Verification (One-to-One)
·High speed fingerprint identification algorithm engine
·Self study function
·Fingerprint feature data read/write functions
·Get Feature Data of Captured fingerprint and Verify/Identify Downloaded Feature with Captured
·Fingerprint Identify Downloaded Feature with Captured fingerprint
·Security Level setting
·Able to set BaudRate/ Device ID/Device Password
·Operating system:Windows 98, Me, NT4.0, 2000, XP,WIN 7 or Android



Specifications

·Interface:USB and UART(3.3V-TTL logic)
·Voltage: DC 4.2-6.0V
·Resolution:508 DPI
·Sensor Array: 256*360 pixel
·Fingerprint reader module size: 35*23*1.5 (mm)
·Effective collection area: 12.8*18.0 (mm)
·Working Current: 40mA
·Fingerprint capacity:1000
·Security Level: 1-5, default is 3
·ScanningSpeed: < 0.2 second
·Verification Speed: < 0.3 second
·Matching Method: 1:1; 1:N
·FRR (False Rejection Ratio): ≤0.01%
·FAR (False Acceptance Ratio): ≤0.001%
·Work environment: -20°C ---55°C
·Work Humidity: 10-85%
·Communications baud rate (UART): (9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

R311 can be used together with K200,K212,K215,K216 fingerprint control board


Files

·All fingerprint module support with Arduino, Android, Windows, Linux, .Net and so on.
·Provide Free SDK Files
·Provide User Manual

You can download the R311 user manual from this website link:



Images

-1

-2

-3

-5





R311 fingerprint module circuit board diagram(Same as R303T board)

-6

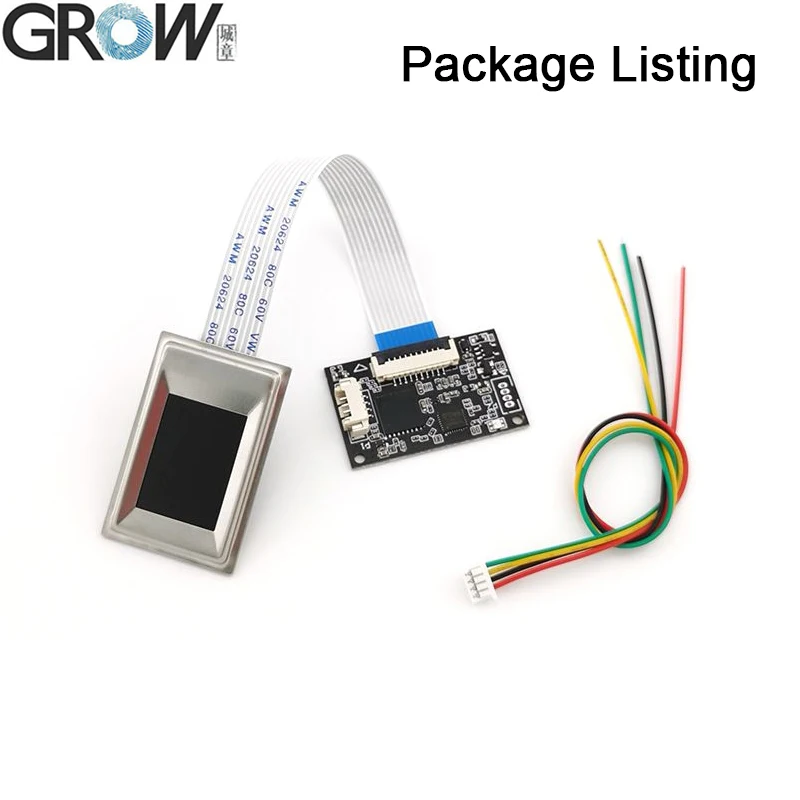

Package Listing


-7

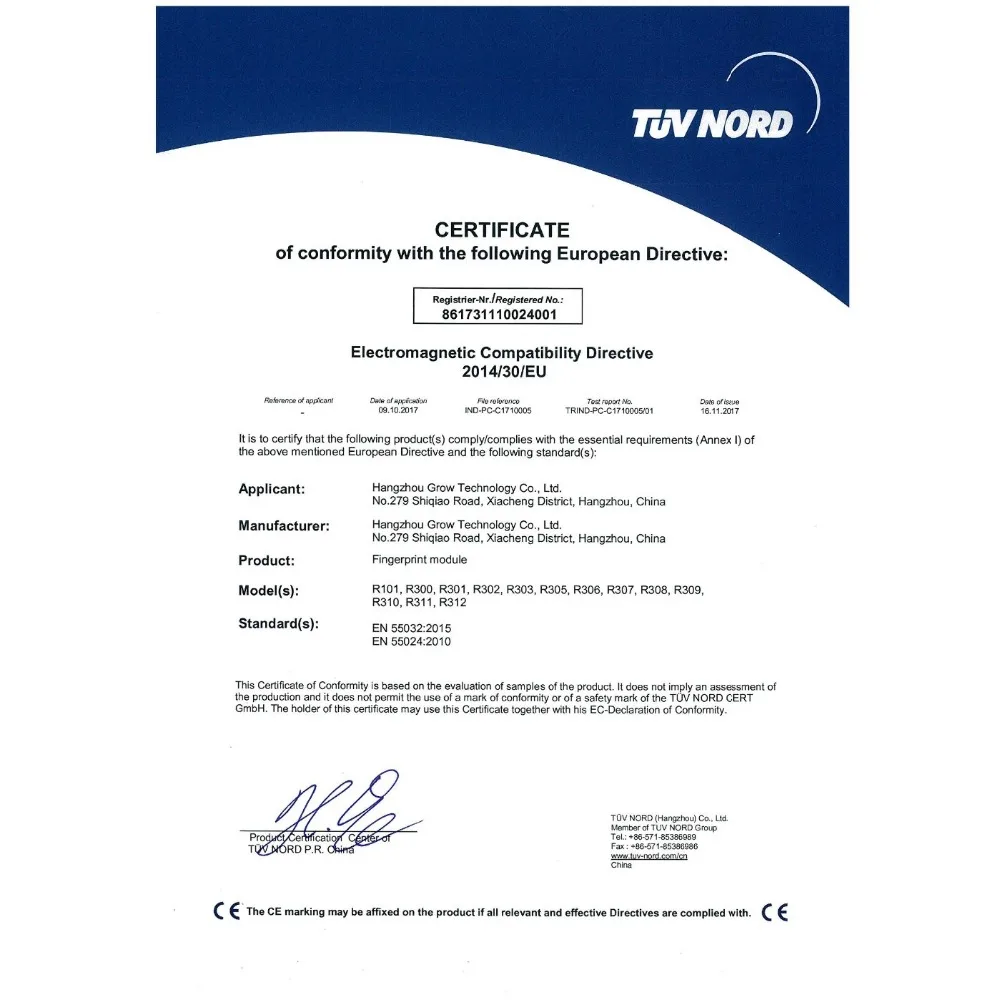

CE Certificate

_20180209214440

Brand Name:
grow
Model Number:
R311
Interface:
USB and RS232 (TTL)
Fingerprint module size:
35.0*23.0*1.5 (mm)
Effective collection area:
12.8*18.0 (mm)
Fingerprint capacity:
1000
Voltage:
DC 4.2-6.0V
Resolution:
508 DPI
Sensing array:
256*360 pixel
