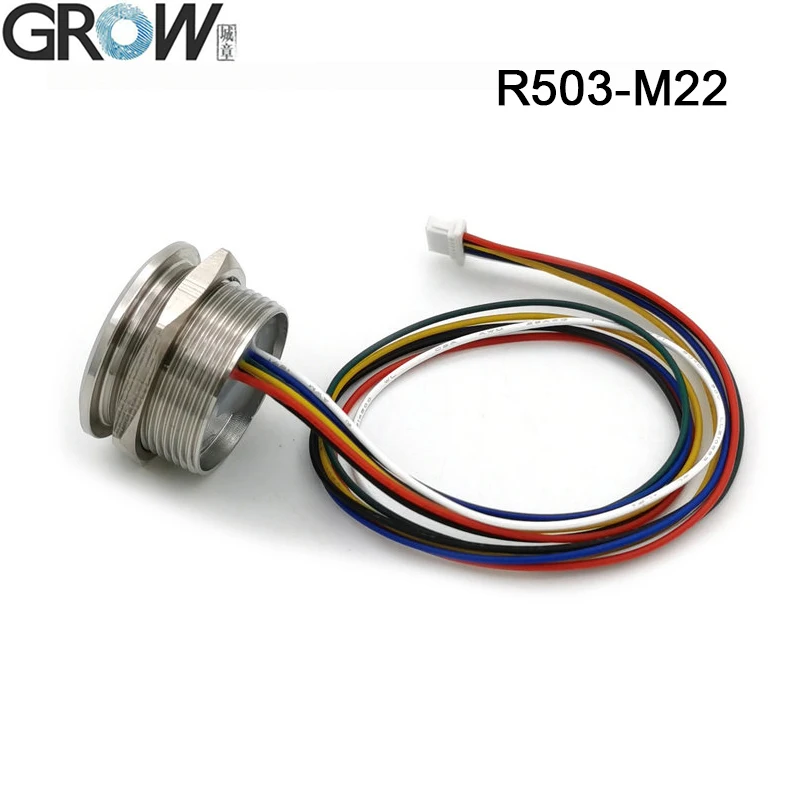

GROW R503-M22 Round RGB Ring Indicator LED Control DC3.3V 200 Capacity SH1.0-6pin Capacitive Fingerprint Module Sensor Scanner
Description
1. Integrated image collecting and algorithm chip together, ALL-in-One
2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate
3. The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box

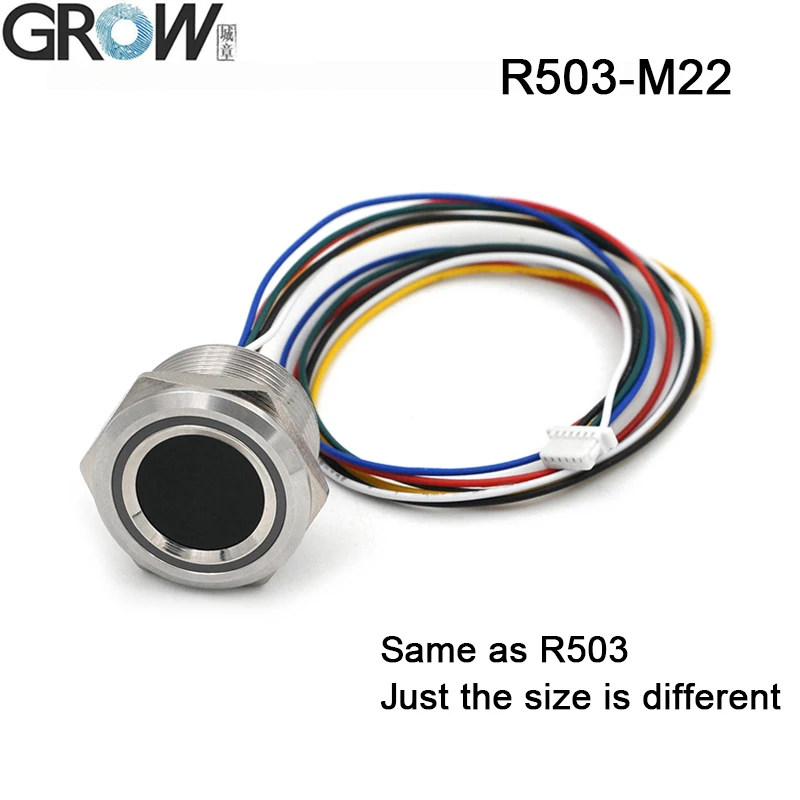

R503-M22 same as R503, just the size is different.
R503-M22 also can work with KS200,K202,K215,KL216,K219,K220,K236,KS220 control board.

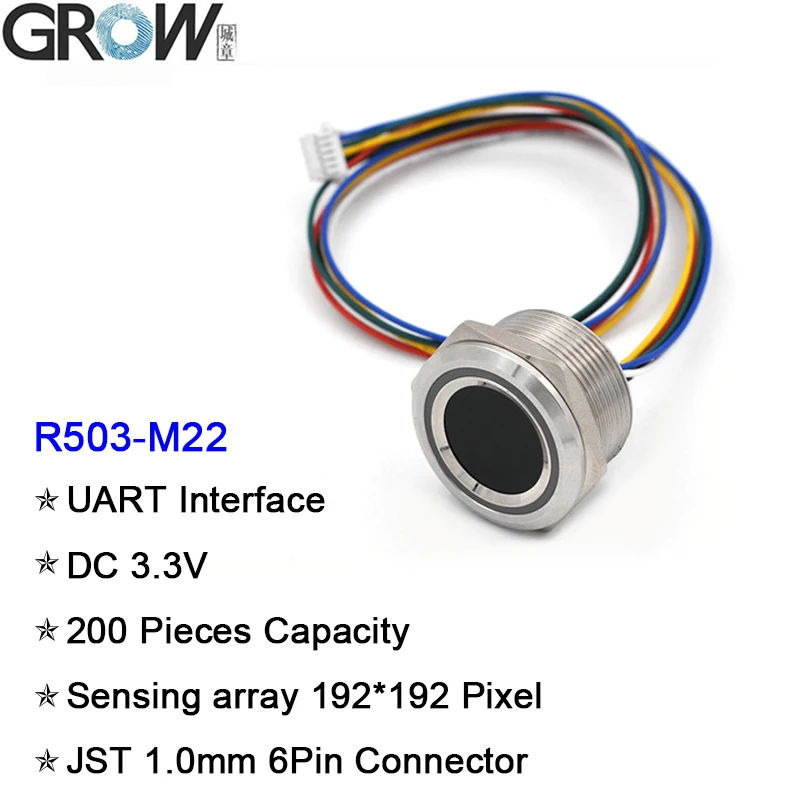

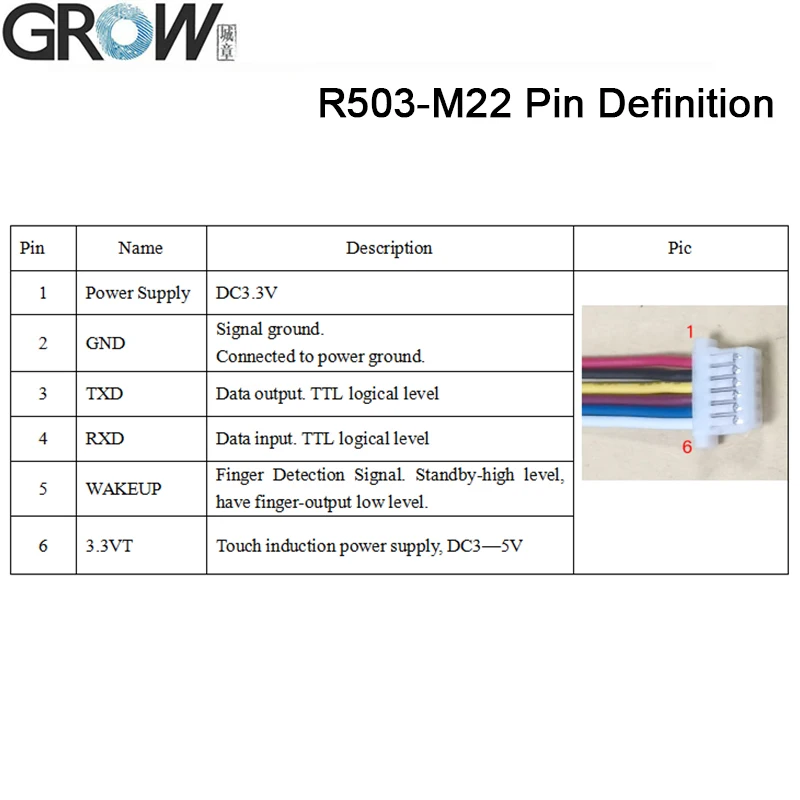

Model | R503-M22 |
Type | Capacitive Fingerprint Module |
Interface | UART(TTL) |
Resolution | 508 DPI |
Voltage | DC 3.3V |
Fingerprint Capacity | 200 |
Sensing array | 192*192 pixel |
Working current | 20mA |
Standby current | Typical touch standby voltage: 3.3V, Average current: 2uA |

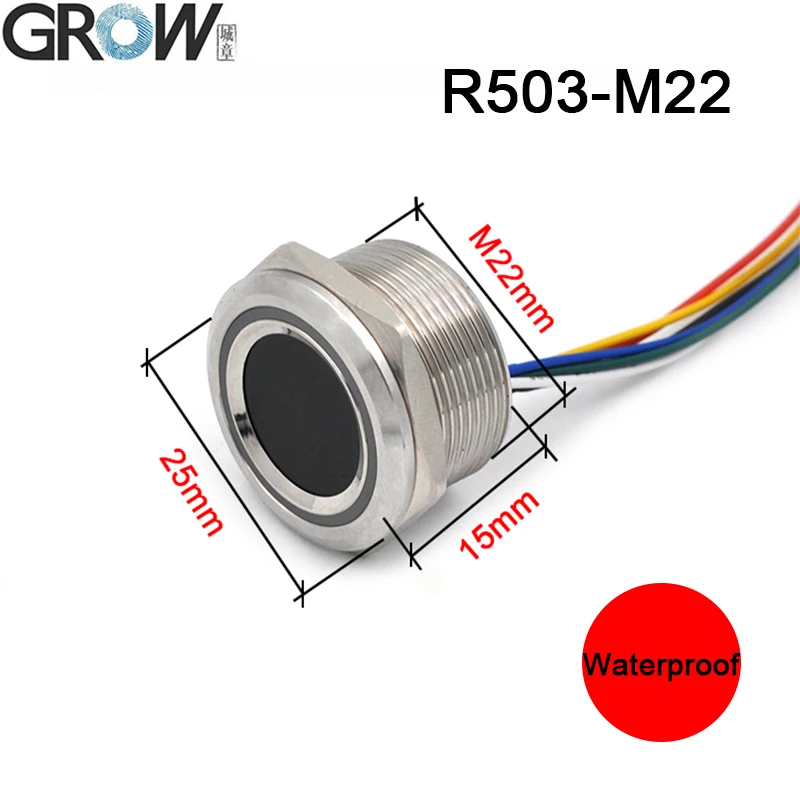

Fingerprint module external size | Diameter 25 (mm) |
Fingerprint module inner size | Diameter 22 (mm)(M22) |
Fingerprint module height | 15 (mm) |
Collection area | Diameter 15.5 (mm) |
Connector | SH1.0-6Pin |
LED Control | YES |
LED Color | RGB |
Scanning Speed | < 0.2 second |
Verification Speed | < 0.3 second |
Matching Method | 1:1; 1:N |
FRR | ≤1% |
FAR | ≤0.001% |
Work environment | -20C ---60C |
Work Humidity | 10-85% |
Anti-static capacity | 15KV |
Abrasive resistance intensity | 1 million times |
Communications baud rate (UART): | (9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps) |
Note:
1. R503-M22: IP65 Waterproof

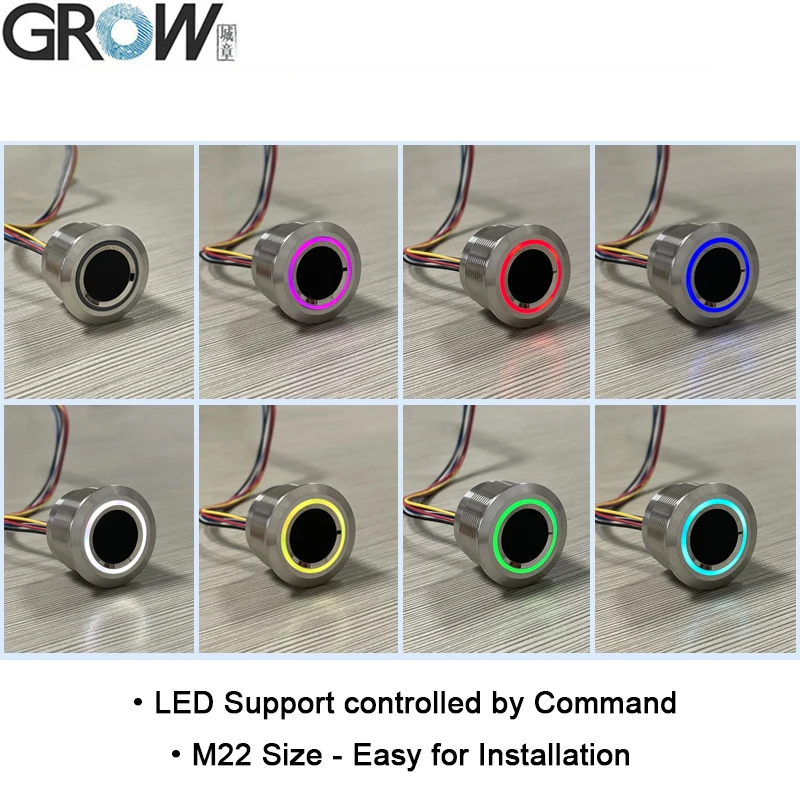

2. RGB LED Color, have 7 colors which can be controlled by command.
3. The Different between R503 and R503-5V and R503-M22 and R503S
R503 | R503-5V | R503-M22 | R503S | |
Power Supply | DC 3.3V | DC 5V | DC 3.3V | DC 3.3V |
Sensing Array | 192*192 Pixel | 192*192 Pixel | 192*192 Pixel | 160*160 Pixel |
Fingerprint Capacity | 200 | 200 | 200 | 150 |
Size | M25 | M25 | M22 | M25 |
Connector | MX 1.0mm 6pin | MX 1.25mm 6pin | MX 1.0mm 6pin | MX 1.0mm 6pin |
·ProvideFree Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual
·Provide User Manual
You can download the R503 R503-M22 user manual from this website link:
If need SDK files,pls contact us.

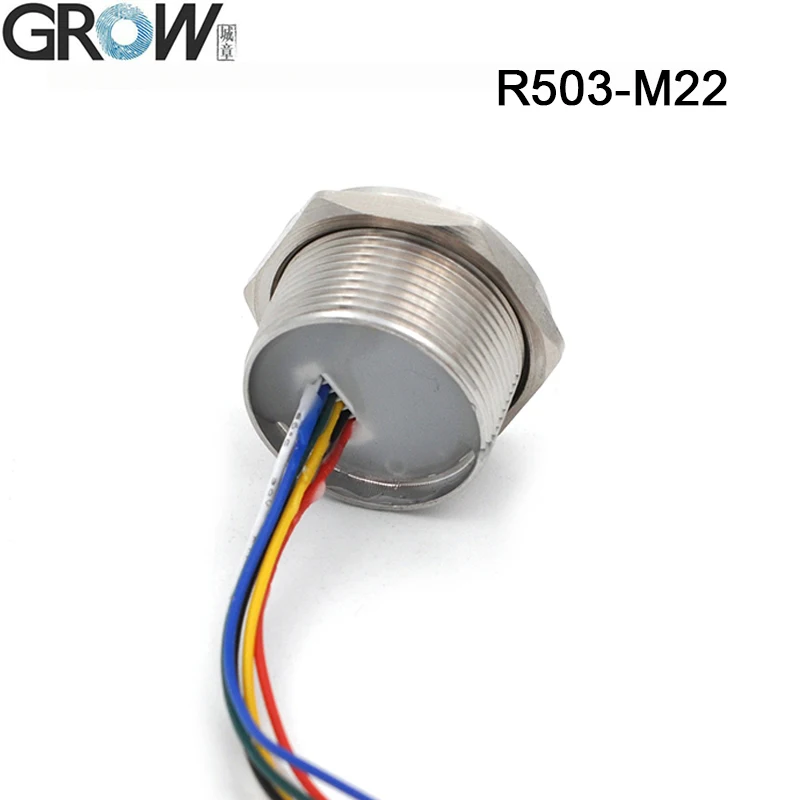

R503-M22 Plastic enclosure
Buyer Shows:
For motorcryle(R503)
For Car:(K215-V1.3+R503)
