GROW R503 New Circular Round RGB Ring Indicator LED Control DC3.3V MX1.0-6pin Capacitive Fingerprint Module Sensor Scanner

stars, based on 0reviews
CA$21.57nowCA$17.84 piece
Quantity Price
10+ CA$17.12
999items available
Contact Us
OR
Description

Product Description

        1. Integrated image collecting and algorithm chip together, ALL-in-One
        2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate
        3. The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box


R503 fingerprint module with RGB ring indicator light, LED can be controlled by command.



Product Specification

Model
R503
Type
Capacitive Fingerprint Module
Interface
UART(TTL)
Resolution
508 DPI
Voltage
DC 3.3V
Fingerprint Capacity
200
Sensing array
192*192 pixel
Working current
20mA
Standby current
Typical touch standby voltage: 3.3V, Average current: 2uA
Fingerprint module external size
Diameter 28 (mm)
Fingerprint module inner size
Diameter 23.5 (mm)
Fingerprint module height
19 (mm)
Effective collection area
Diameter 15.5 (mm)
Connector
MX1.0-6Pin
LED Control
YES
LED Color
RGB
Scanning Speed
< 0.2 second
Verification Speed
< 0.3 second
Matching Method
1:1; 1:N
FRR
≤1%
FAR
≤0.001%
Work environment
-20C ---60C
Work Humidity
10-85%
Anti-static capacity
15KV
Abrasive resistance intensity
1 million times
Communications baud rate (UART):
(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)





Product Files

·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual

You can download the R503 user manual from this website link:
 503 Test program operation display video on Youtube: https://youtu.be/eD2xtwCWOmQ


If need SDK files,pls contact us.





Product Pictures








Buyer Shows:
For motorcryle(R503)



For Car:(K215-V1.3+R503)



If need plastic enclosure for R503, pls check this link:
Note:The enclosure can rain and dust resistant, but not waterproof.


If need zinc alloy enclosure for R503, pls check this link:


If need fingerprint control board, R503 can be used together with K200-3.3 fingerprint control board



If need fingerprint control board, R503 can be used together with K202 fingerprint control board

If need fingerprint control board, R503 can be used together with K215-V1.2 fingerprint control board



If need fingerprint control board, R503 can be used together with K216 fingerprint control board

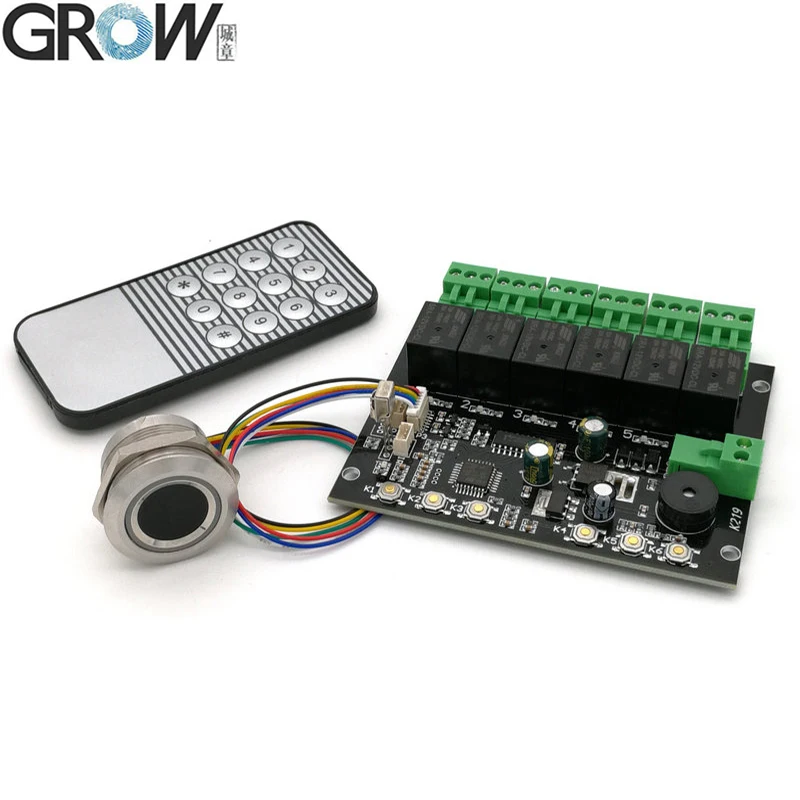

If need fingerprint control board, R503 can be used together with K219-A fingerprint control board

If need fingerprint control board, R503 can be used together with K220 fingerprint control board

https://www.aliexpress.com/item/1005002361921248.html?spm=2114.12010611.8148356.1.647e1908yRI1jf


If need fingerprint control board, R503 can be used together with K236-A fingerprint control board



CE Certificate

_20180209214440

Brand Name:
grow
Model Number:
R503
Interface:
RS232 (TTL)
Effective collection area:
diameter 15 (mm)
Fingerprint capacity:
200
Voltage:
DC 3.3V
Resolution:
508 DPI
