GROW R503Pro UART/USB 1500 Capacity Round RGB LED Control DC3.3V Capacitive Fingerprint Module Sensor Scanner For Access Control
Description
1. Integrated image collecting and algorithm chip together, ALL-in-One
2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate
3. The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box

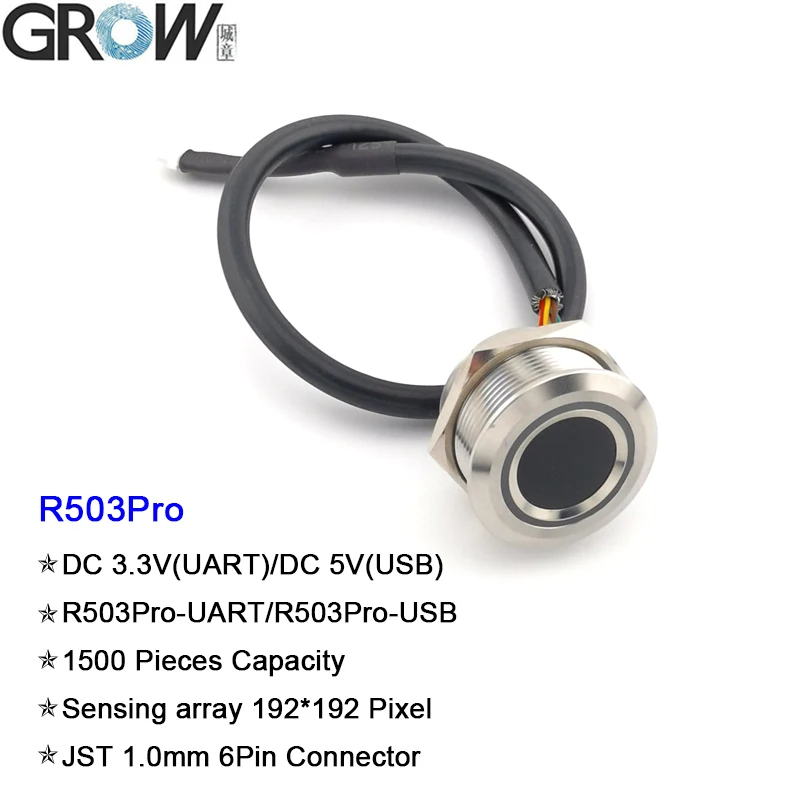

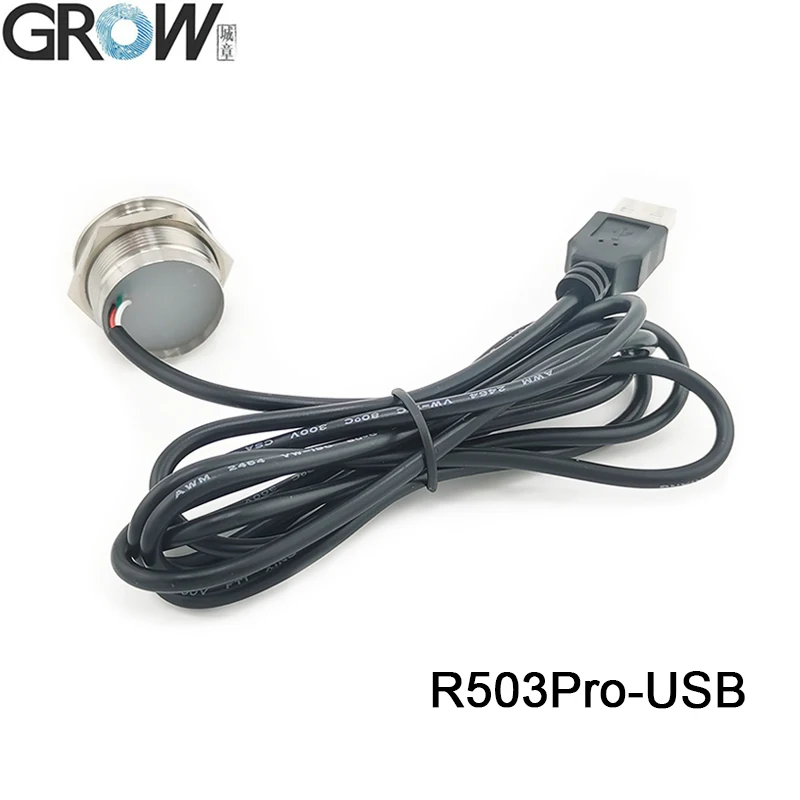

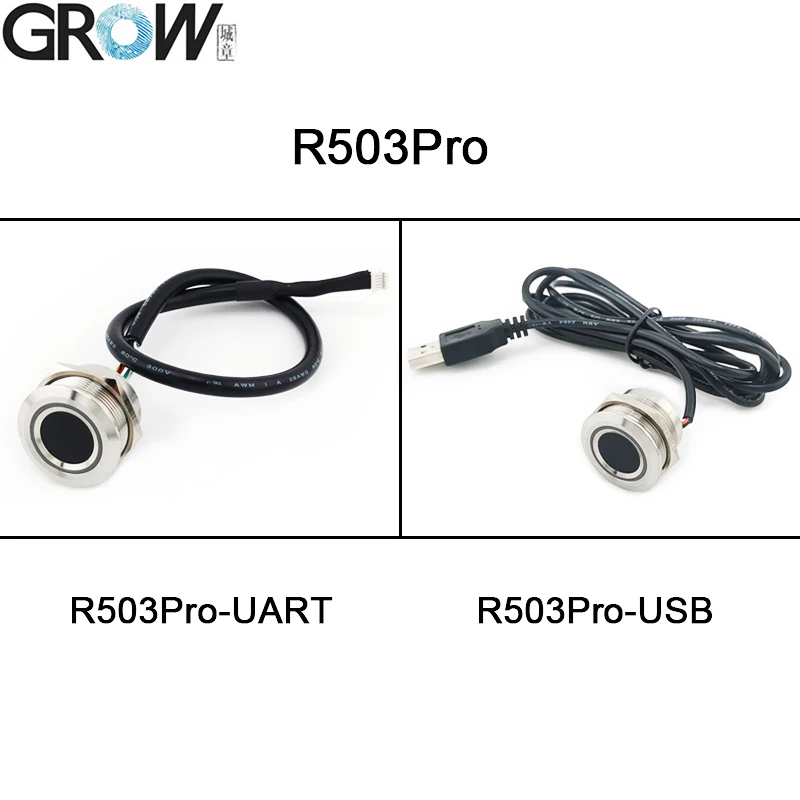

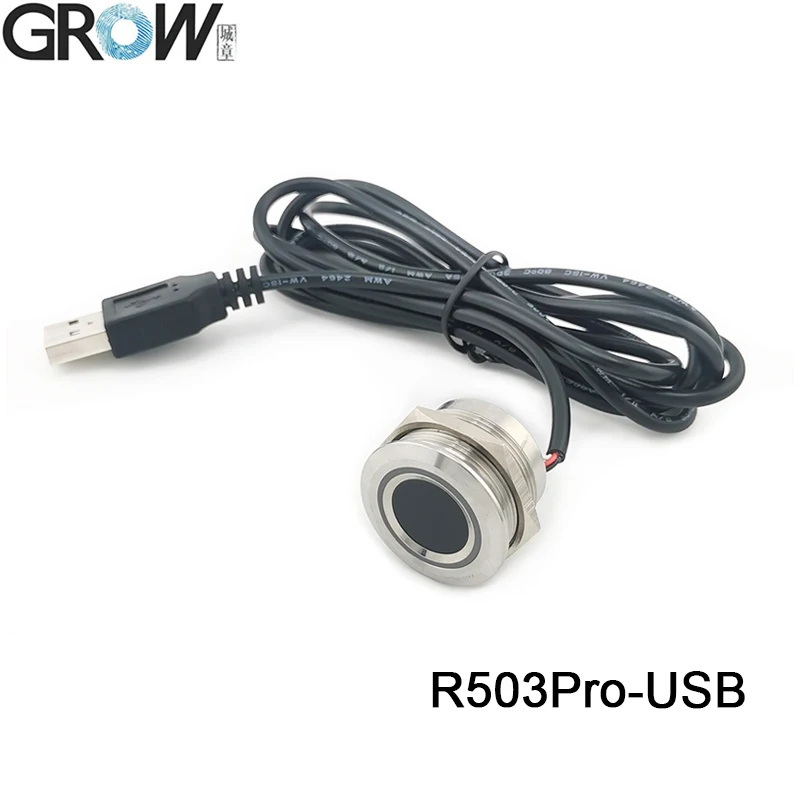

The R503Pro have 1500 capacity and have R503Pro-UART type and R503Pro-USB type.
Model | R503Pro |
Type | Capacitive Fingerprint Module |
Interface | UART(TTL)/USB |
Resolution | 508 DPI |
Voltage | R503Pro-UART: DC 3.3V R503Pro-USB: DC 5V |
Fingerprint Capacity | 1500 |
Sensing array | 192*192 pixel |
Working current | 20mA |
Standby current | Typical touch standby voltage: 3.3V, Average current: 2uA |

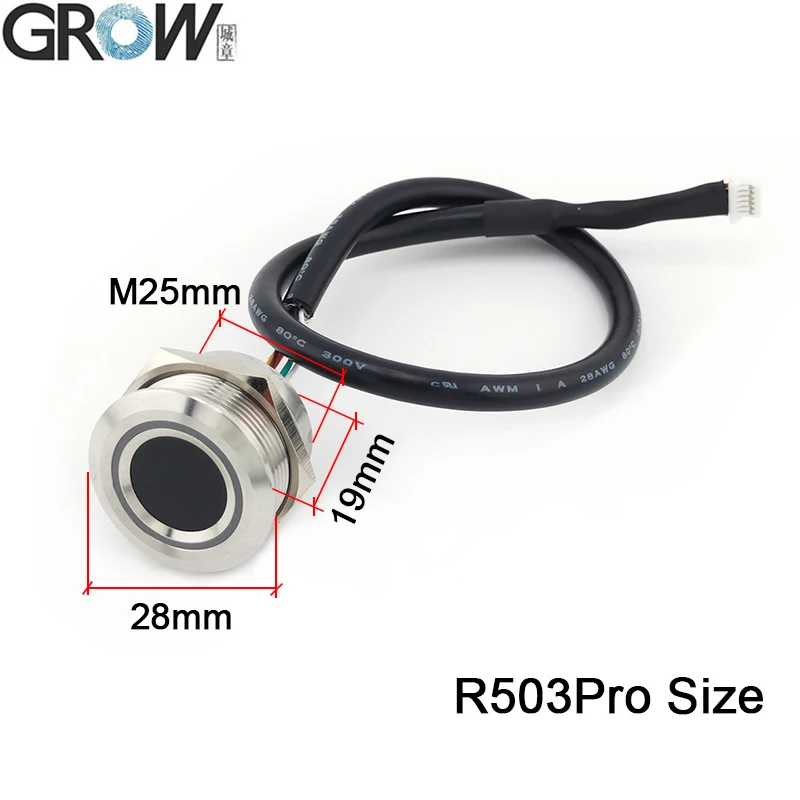

Fingerprint module external size | Diameter 28 (mm) |
Fingerprint module inner size | Diameter 25 (mm) (M25) |
Fingerprint module height | 19 (mm) |
Collection area | Diameter 15.5 (mm) |

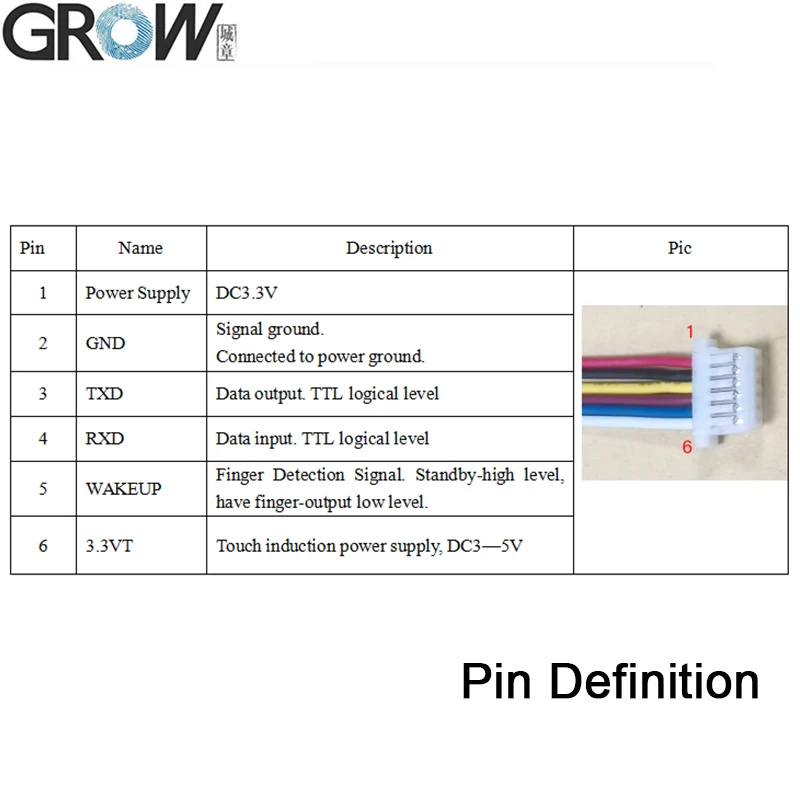

Connector | SH1.0-6Pin |
LED Control | YES |
LED Color | RGB |
Scanning Speed | < 0.2 second |
Verification Speed | < 0.3 second |
Matching Method | 1:1; 1:N |
FRR | ≤1% |
FAR | ≤0.001% |
Work environment | -20C ---60C |
Work Humidity | 10-85% |
Anti-static capacity | 15KV |
Abrasive resistance intensity | 1 million times |
Communications baud rate (UART): | (9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps) |
Note:
1. R503Pro: IP65 Waterproof

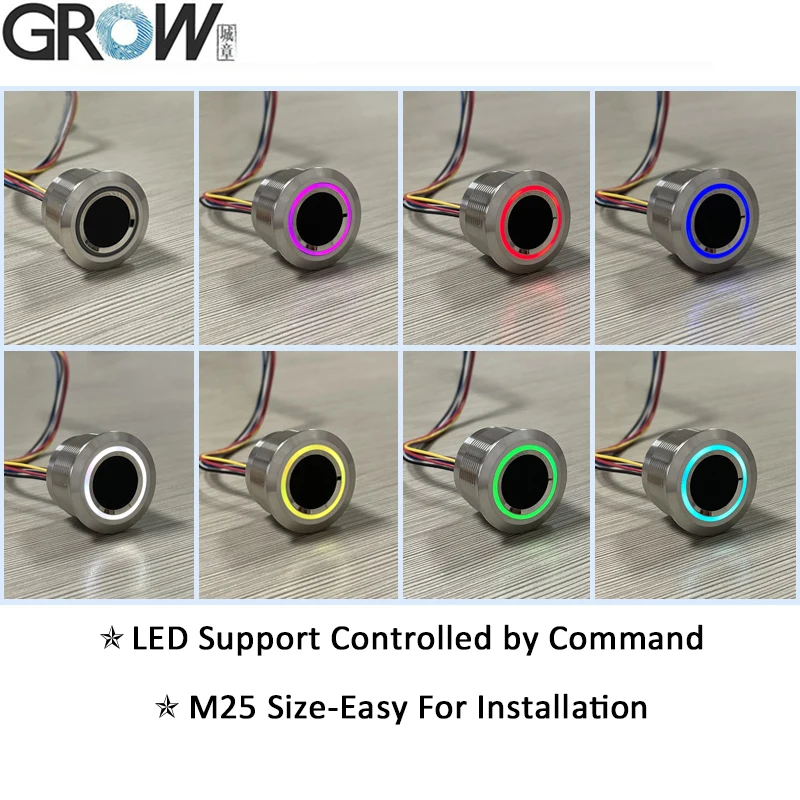

2. RGB LED Color, have 7 colors which can be controlled by command.
3. R503Pro is not compatible with R503.

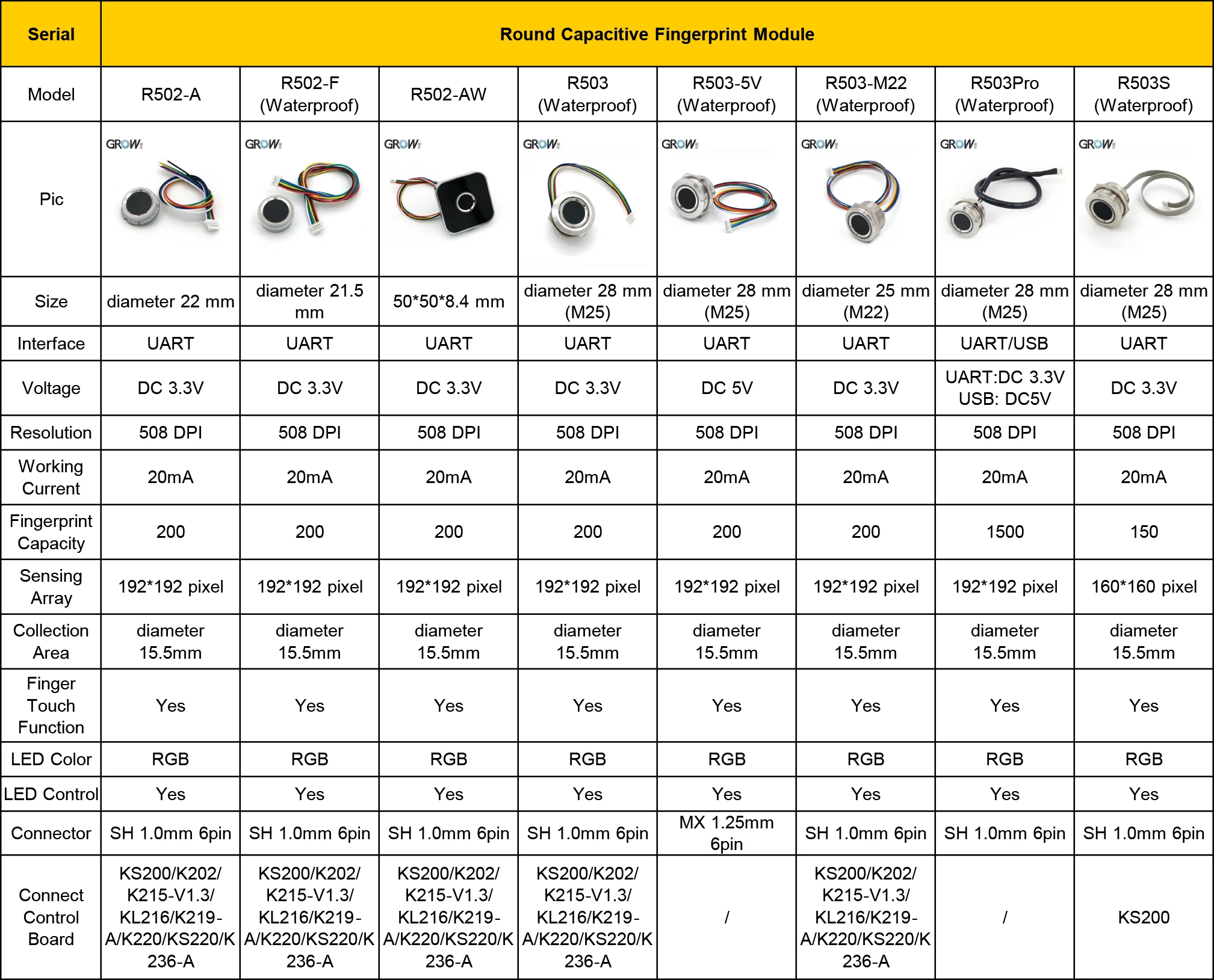

4. The Different between R503 and R503-5V and R503-M22 and R503Pro and R503S
R503 | R503-5V | R503-M22 | R503Pro | R503S | |
Power Supply | DC 3.3V | DC 5V | DC 3.3V | UART: DC 3.3V USB: DC 5V | DC 3.3V |
Sensing Array | 192*192 Pixel | 192*192 Pixel | 192*192 Pixel | 192*192 Pixel | 160*160 Pixel |
Fingerprint Capacity | 200 | 200 | 200 | 1500 | 150 |
Size | M25 | M25 | M22 | M25 | M25 |
Connector | SH1.0mm 6pin | MX1.25mm 6pin | SH1.0mm 6pin | SH1.0mm 6pin | SH1.0mm 6pin |
·ProvideFree Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual
·Provide User Manual
You can download the R503Pro user manual from this website link:
If need SDK files,pls contact us.
Buyer Shows:
For motorcryle
For Car:
If need plastic enclosure for R503Pro, pls check this link:
Note:The enclosure can rain and dust resistant, but not waterproof.
If need zinc alloy enclosure for R503Pro, pls check this link:
If need iron plate for R503Pro, pls check this link:
- Brand Name:
- grow
- Model Number:
- R503Pro
- Interface:
- RS232 (TTL)/USB
- Effective collection area:
- diameter 15 (mm)
- Fingerprint capacity:
- 1500
- Voltage:
- R503Pro-UART Voltage: DC 3.3V R503Pro-USB Voltage: DC 5V
- Resolution:
- 508 DPI
