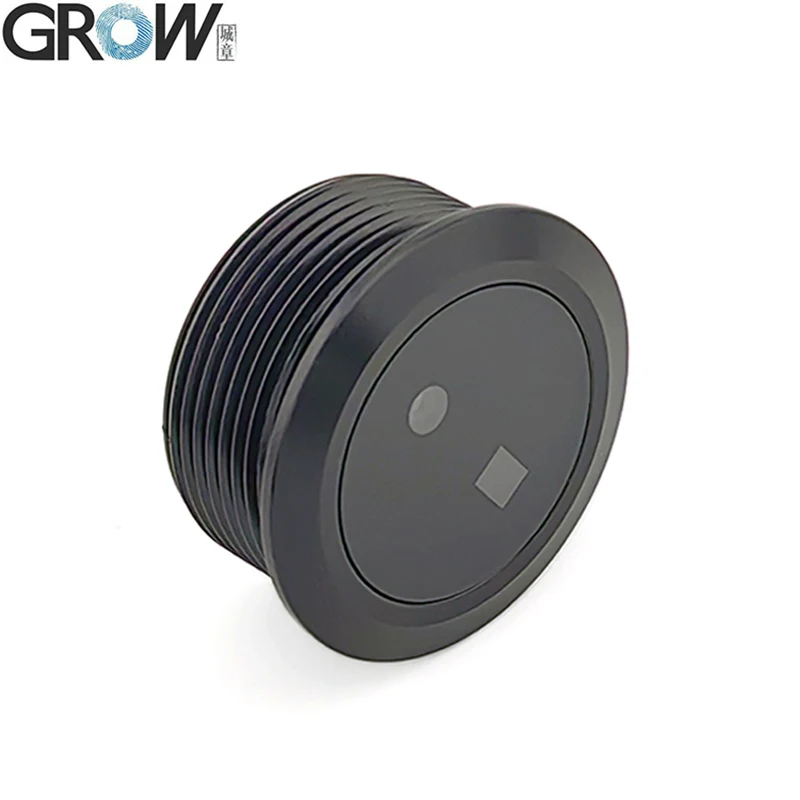

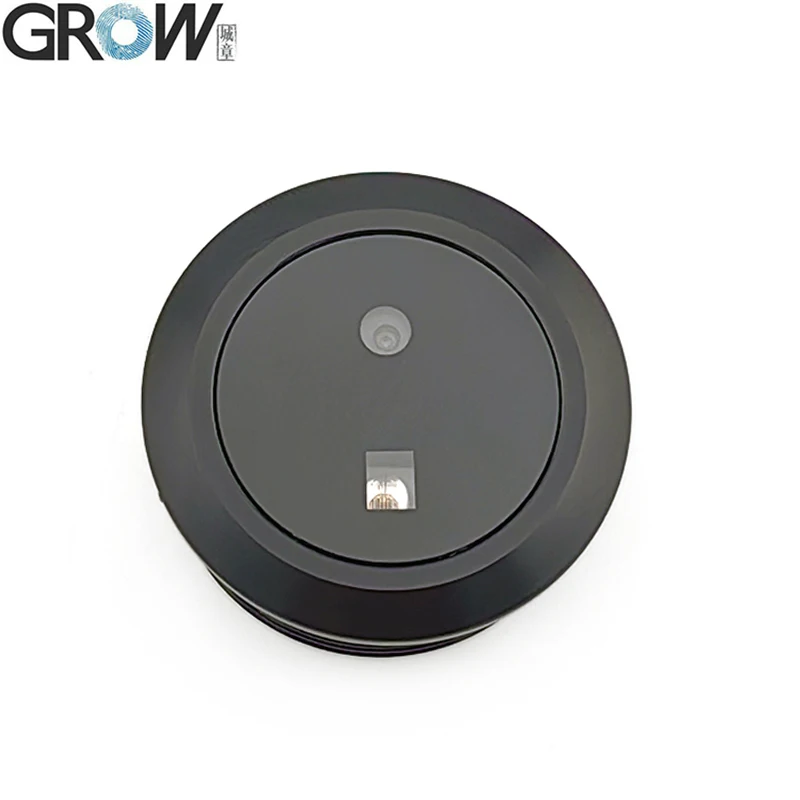

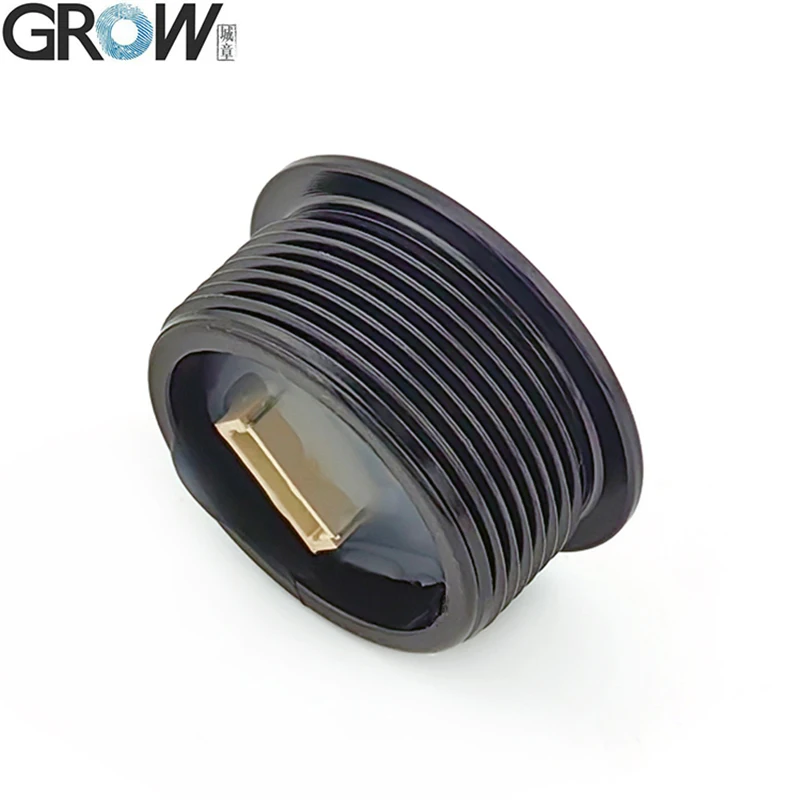

GROW FP001-M22 USB/UART Single Lens DC3.3V Aluminum Alloy Facial Recognition Module Easy Installation For Security System

stars, based on 0reviews

~~$15.00~~$11.00 piece

Quantity Price

1+ $11.00

10+ $10.56

Description
Item specifics

The FP001 facial and palm vein recognition module is equipped with a bionic facial recognition algorithm and supports infrared detection, which not only ensures security but also provides a good user experience. It has the characteristics of low power consumption, low cost, fast recognition, ingenious product structure design, and easy installation. It uses a high-computing power chip to quickly complete the entire process of facial recognition and palm vein recognition.

Features include:

Supports live face recognition, offering simple operation, fast recognition, high accuracy, and strong adaptability.

Low-cost/high-performance: Using facial/palm vein recognition modules, this solution achieves both low cost and high performance.

Supports UVC/UAC transmission methods and MJPEG video format.

Parameter	Performance

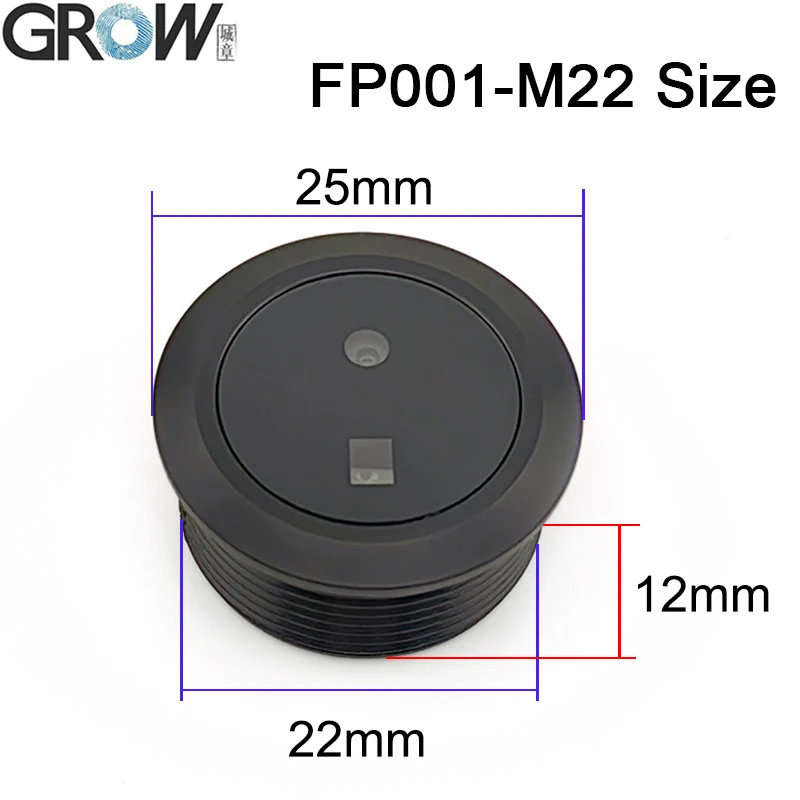

Product Size	FP001-M22: Outer diameter 25mm, Height 12mm Mounting hole diameter 22mm FP001-M25: Outer diameter 28mm, Height 15mm Mounting hole diameter 25mm
Capacity	Face: 500(ID:1-500) Palm Vein：300 (ID501-800)
Reading Distance	Face registration distance: 30-60cm Face search distance: 20-90cm Palm vein registration distance: 15-20cm Palm vein searchdistance: 10-20cm
Indicator Light	FP001-M25 have three colors. Red,Green,White FP001-M22 don’t have indicator light.
Cold StartSpeed	≤240ms
FRR	<0.1%
FAR	<0.001%
UARTBaud Rate	115200bps

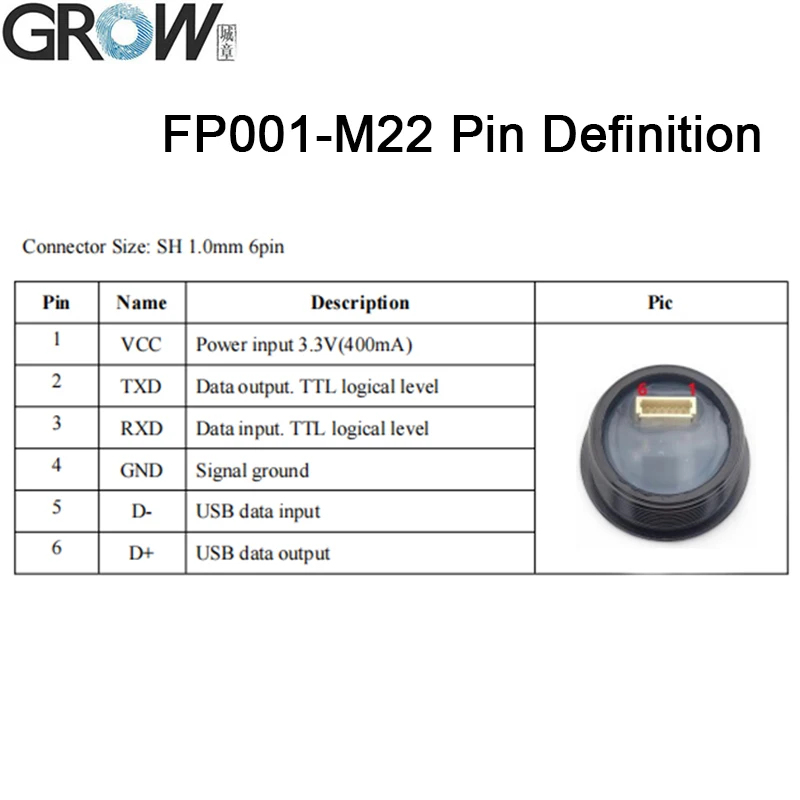

Interface	UART,USB
Operating Voltage	DC 3.3V
Operating Current	400mA
Standby Current	175mA
Operating Temperature	-20°C ~+50°C
Storage Temperature	-40°C ~+70°C
Operating Humidity	<95%
Storage Humidity	<95%

·Provide User Manual

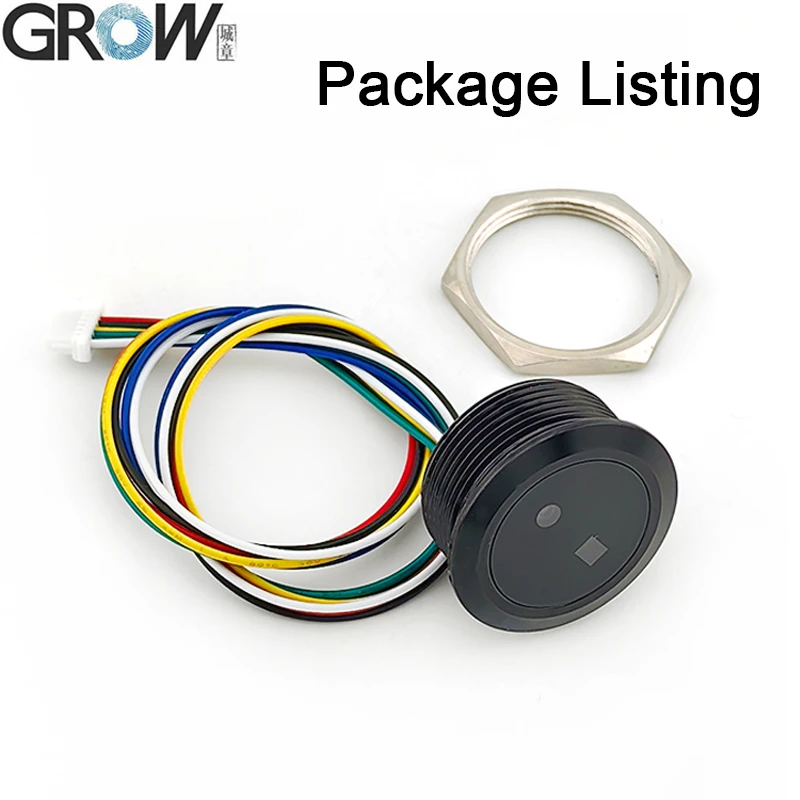

1* FP001-M22 Facial Recognition Module
