GROW FP002 UART Interface Double Lens Facial Recognition Module With Palm Vein Function IR Induction DC 4.5-12V Low Consumption

stars, based on 0reviews

~~$20.00~~$15.50 piece

Quantity Price

1+ $15.50

10+ $14.88

Description
Item specifics

The FP002 facial and palm vein recognition module is equipped with a bionic facial recognition algorithm and supports infrared detection, which not only ensures security but also provides a good user experience. It has the characteristics of low power consumption, low cost, fast recognition, ingenious product structure design, and easy installation. It uses a high-computing power chip to quickly complete the entire process of facial recognition and palm vein recognition.

Features include:

Supports live face recognition, offering simple operation, fast recognition, high accuracy, and strong adaptability.

Low-cost/high-performance: Using facial/palm vein recognition modules, this solution achieves both low cost and high performance.

Supports infrared detection, allowing for flexible adjustment of detection distance based on application scenarios.

Parameter	Performance
Product Size	Outer diameter 36mm, Height 11mm Mounting hole diameter 32mm
Capacity	Face: 500(ID:1-500) Palm Vein：300 (ID501-800)
Reading Distance	Face registration distance: 20-90cm (optimal range:45-65cm) Face search distance: 20-130cm Palm vein registration distance: 15-20cm Palm vein searchdistance: 10-20cm
Infrared Detection Distance	0-70cm(At3.3V, infrared trigger standby average current 60uA peak power 88uA)
Indicator	Red,Green,White
Cold Start Speed	≤250ms
FRR	<0.1%
FAR	<0.001%
UARTBaud Rate	115200bps

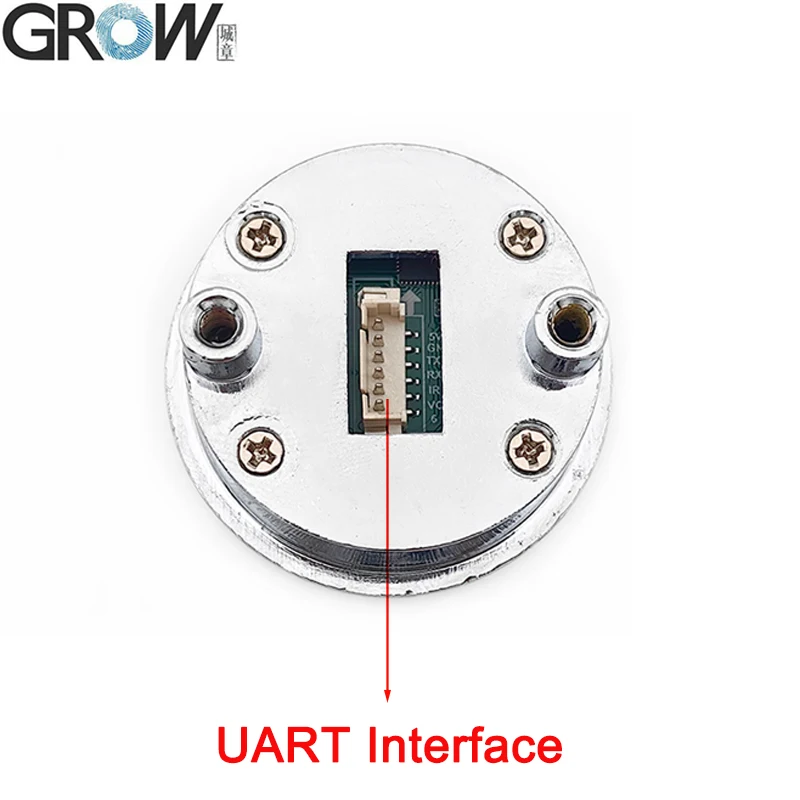

Interface	UART
Operating Voltage	DC 4.5-12V
Operating Current	200mA
Standby Current	38mA
Operating Temperature	-20°C ~+50°C
Storage Temperature	-40°C ~+70°C
Operating Humidity	<95%
Storage Humidity	<95%

·Provide User Manual

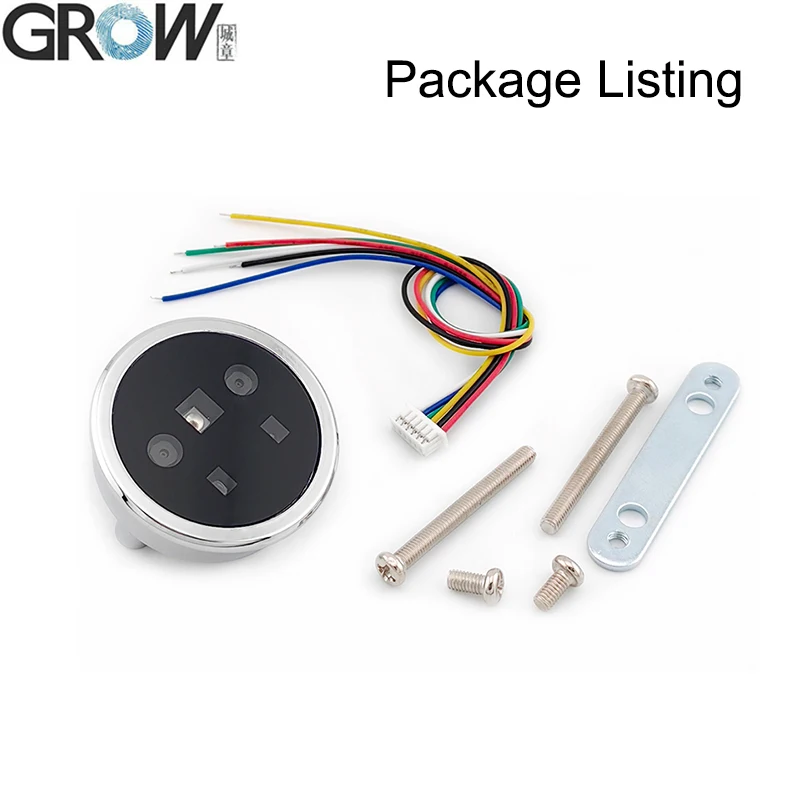

1* FP002 Facial Palm Vein Recognition Module +1.25 mm 6Pin Serial Cable+Screws
