11%OFF

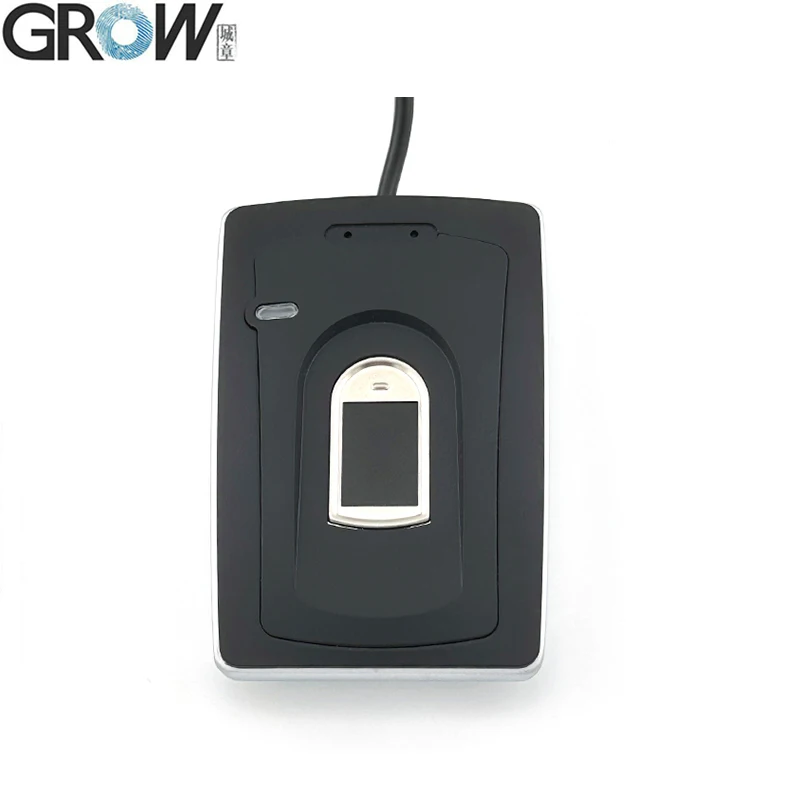

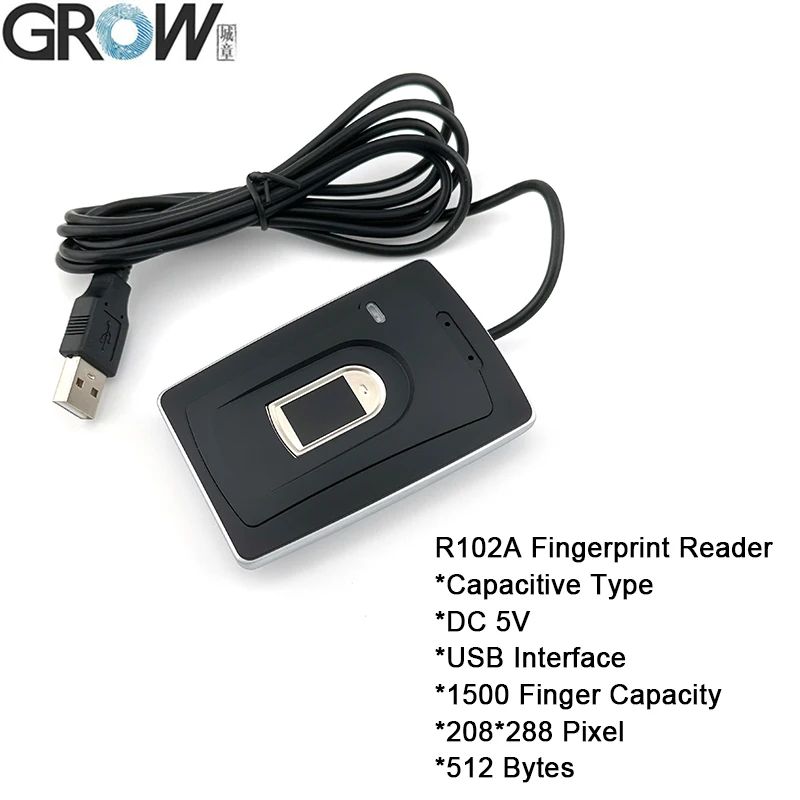

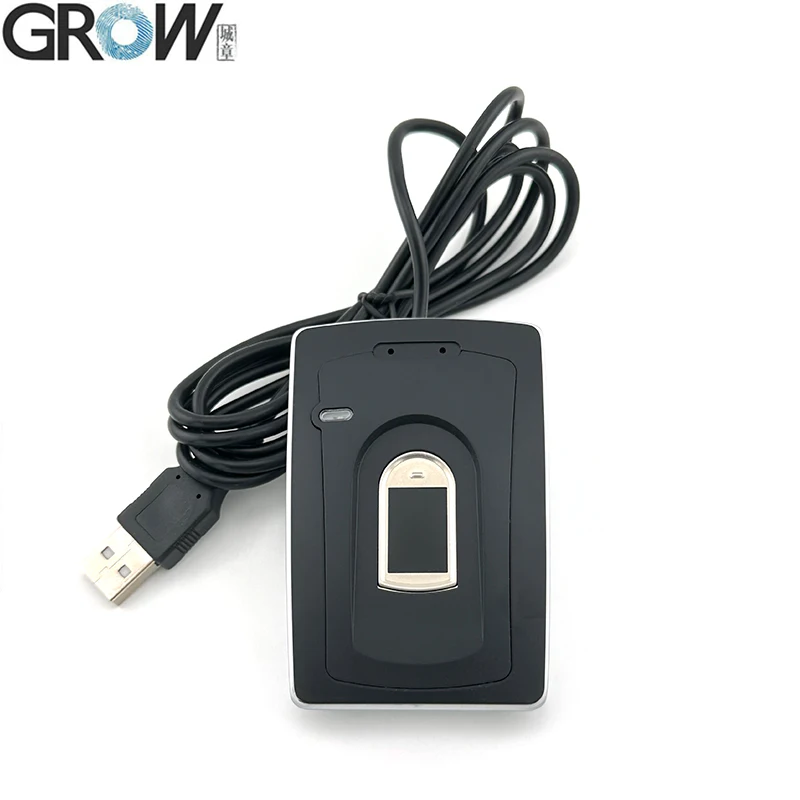

GROW R102A Capacitive USB Fingerprint Reader With DC5V 208*288 Pixel 1500 Capacity For Windows Android Access Control

stars, based on 0reviews
$39.50now$35.00 piece
Quantity Price
5+ $33.60
999items available
Contact Us
OR
Description



R102A outstandingly features self-learning function. During the fingerprint verification process,the latest collected fingerprint features would be integrated into the fingerprint database automatically so that the users would obtain better and better fingerprint verification result.

·High performance fingerprint reader for precise authentication with PC or network security
·Excellent adaption for dry, wet, harsh fingerprint
·USB interface for high speed communication
·Windows98,Me,NT4.0,2000,XP,Vista WIN7,Android support
·Outstanding authentication performance combined with SDK
·Adopts zinc alloy and well protect the fingerprint sensor
·High speed fingerprint identification algorithm engine
·Self study function
·Fingerprint feature data read/write functions
·Get Feature Data of Captured fingerprint and Verify/Identify Downloaded Feature with Captured fingerprint
·Identify Downloaded Feature with Captured fingerprint
·Security Level setting





Model

R102A

Capacitive USB Fingerprint Reader

Interface

USB 2.0

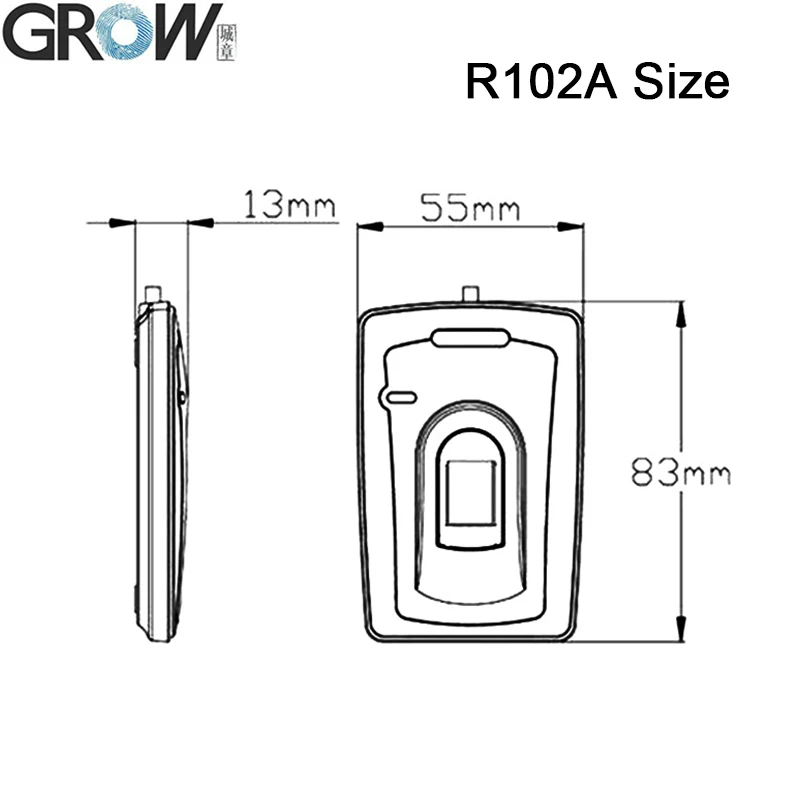

Dimension (L*W*H)

83*55*13 mm

Scanning Speed

< 0.2 second

Verification Speed

< 0.3 second

Matching Method

1:1; 1:N

Resolution

508DPI

Fingerprint Capacity

1500

Sensing Array

208*288 pixel

Template Size

 512 bytes

Voltage

5V

Collection Area

12*17.5mm

FRR (False Rejection Ratio):

≤0.01%

FAR (False Acceptance Ratio):

≤0.0001%

Power Consumption

Work 100ma, Peak 150ma

Antistatic capacity

15KV

Abrasive resistance intensity

1 million times

Work environment

-20°C ---55°C

Work Humidity

10-80%





·Support Windows98,Me,NT4.0,2000,XP,Vista WIN7,Android
·Provide Free SDK Files for Arduino, Android,.Net,Windows and so on.

You can dowload Spec of R102A from the following website:

You can dowload R102A SDK from the following website:

For more development file, pls check dowload R304A user manual from the following website:

Operation Video on Youtube: https://youtu.be/7acMMVBuhuo









Brand Name:
grow
Model Number:
R102A
Interface:
USB
Dimension:
83*55*13 (mm)
Fingerprint capacity:
1500
Voltage:
DC 5V
Resolution:
508 DPI
